Model: | SFM0408P | Drive Mode: | Pneumatic |
---|---|---|---|
Processing Range: | 4"-8" | Max Wall Thickness: | 40mm |
Gross Weight: | 73kg | Net Weight: | 40kg |
Warranty: | 1 Year | Cutting Mode: | Cold Cutting |
High Light: | pneumatic pipe cutting beveling machine,pneumatic cold cutting machine |

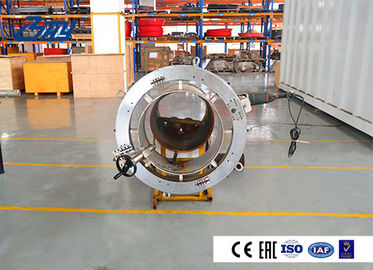

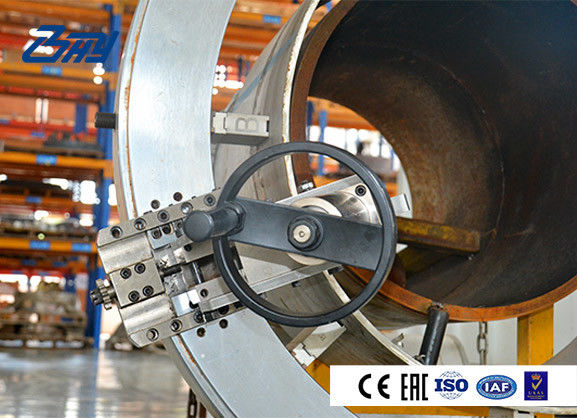

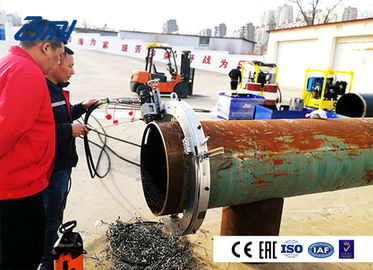

Self Centering Portable Pipe Cutter and Beveller with stable performance and perfect speed adjustable function,with CE certificate.This series machine main applied in the field of power plant pipeline installation, chemical industry, shipbuilding, especially pipeline prefabrication and low clearance on site working, such as maintain thermal power auxiliary equipment, boiler pipe valve.
Model | SFM0408P |
Drive Mode | Pneumatic |
Air Requirements | 2-3m³/min |
Application Range (O.D.) | 4"-8" |
Wall Thickness | ≤40mm |
Net Weight | 40kg |
Feed Method | Star wheel system |
Feed | 0.08mm/r |
All standard accessories included |
Automatic centering tube center, manual adjustment is not needed for concentricity and verticality
Compact, high-strength aluminum body, small and exquisite.
With the new synchronous feed mechanism, the feed is even and the tool life is longer.
Easy installation, operation and maintenance.
Cutting and groove one time, high processing efficiency.
Adaptability. Adjust the machine according to requirement
Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) | Drive mode |
SFM0206 | 2"~ 6" | 30 | 35 |
Pneumatic Hydraulic Electric |
SFM0408 | 4"~ 8" | 40 | 40 | |
SFM0612 | 6"~12" | 80 | 45 | |
SFM0814 | 8"~14" | 100 | 55 | |
SFM1218 | 12"~18" | 100 | 70 | |
SFM1420 | 14"~20" | 100 | 76 |
Electric Hydraulic |
SFM1824 | 18"~24" | 100 | 123 | |
SFM2026 | 20"~26" | 100 | 130 | |
SFM2430 | 24"~30" | 100 | 142 | |
SFM2632 | 26"~32" | 100 | 150 | |
SFM3036 | 30"~36" | 100 | 159 | |
SFM3642 | 36"~42" | 100 | 179 | |
SFM4248 | 42"~48" | 100 | 198 | |
SFM4860 | 48"~60" | 100 | 642 | |
SFM6072 | 60"~72" | 100 | 730 | |
SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
