Product Details:
Payment & Shipping Terms:
|
Model: | SFM0814P | Drive Mode: | Pneumatic |
---|---|---|---|
Gross Weight: | 85kg | Feed Method: | Star Wheel System |
Finish: | Anodizing Sand Blasting | Structure: | Split Frame Machine |
High Light: | pneumatic cold pipe cutter,pneumatic cold cutting machine |

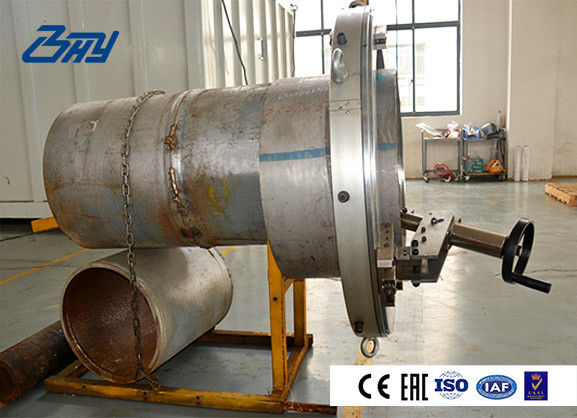

The SFM Series of Pipe Cutting and Beveling Machine manufactured by our company cuts,bevels, counterbores, drills and mills the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2,100 mm and maximum wall thickness of 100 mm. SFM series equipment is one removable, portable, burr-free, highly-precise and vertical cold working pipe cutting and beveling equipment which can be used to process the pipe, install the bridge rail and repair the end surface of flange. It is the best choice for the outdoor construction!
We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC. We adopt the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.
■ The drive mode is diversified, including the electric, pneumatic and hydraulic type, suitable for different processing sites and requirements;
■ The adjustable high-strength bearing guarantees the uttermost operation stability of the machine;
■ It is equipped with complete accessories with ability of processing standard bevel, compound bevel and cutting thick-walled pipe.

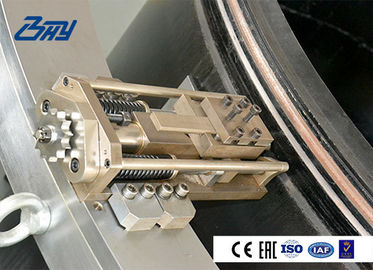

Spring tool slide | It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure even feed, and can keep standard wall thickness of large diameter counterbore when combined with counterbore tool slide. |
Thick-wall tool slide
|
It can be applied to SFM 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses. |
Drilling and milling tool slide |
Achieve pipe cutting by using the drilling and milling. High-strength tool slide, smooth cutting and simple operation. |
Internal boring tool slide | It is suitable for pipeline internal boring. |
Bridge type tool slide | It is suitable for pipeline internal boring and single point beveling. |
Q: Do you have any foreign agents?
A: Yes, of course. We pay attention to the foreign market and expand the foreign continuously through our agents in Russia, Korea, Sudan, Pakistan, Malaysia and so on. We are willing to develop new agents in other countries.
Q: Which certificate does your company have?
A: We have many certificates such as high-tech enterprises, high-tech product certification, high-tech product certification, ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates of our machines.
