Product Details:
Payment & Shipping Terms:
|
| Model: | SFM0612P | Drive Mode: | Pneumatic |
|---|---|---|---|
| Dimension: | 1000*990*305mm | Net Weight: | 45kg |
| Application Range (O.D.): | 6" - 12"(168.3-323.9mm) | Application: | Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory |
| Shipping Weight: | 75kg | More: | All Standard Accessories Included |
| High Light: | pneumatic pipe cutting beveling machine,pneumatic cold pipe cutter |
||

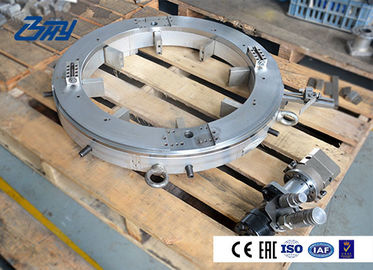

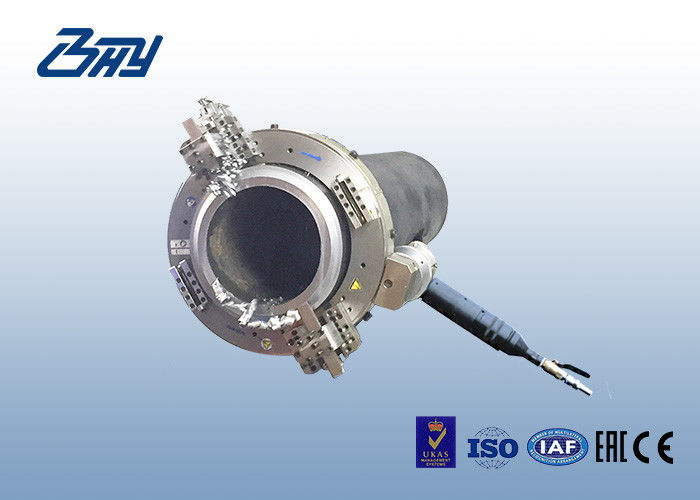

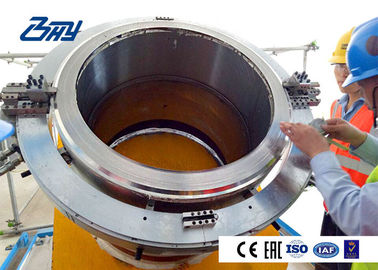

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,
with which cutting and beveling can be conducted at the same time.
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
