48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe

48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe
48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe 48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe 48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe 48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe

Large Image :  48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe

Product Details:
Place of Origin: Suzhou, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM4860
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Name: 48" - 60" Pipe Cutting And Beveling Machine,Portable Cold Cutters For Pipe Model: SFM 4860
Drive Mode: Hydraulic Processing Range: 48”- 60”(1219.2-1524mm)
Function: Cutting And Beveling, Cold Cutting, Portable Feed: 0.08mm/r
Hydraulic Demand:: 65L/Min,10MPa (15.8GPM,1500PSI)
High Light:

60" Pipe Cutting and Beveling Machine

,

60" automatic pipe beveling machine

,

48" Pipe Cutting and Beveling Machine

60" - 72" Pipe Cutting and Beveling Machine,Portable Cold Cutters For Pipe

Pipe Cutting and Beveling Machine Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.





Pipe Cutting and Beveling Machine Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire



Pipe Cutting and Beveling Machine Product Features

■ Split frame structure, can be quickly install

Cold Cutting and Beveling, no heat affected zones

Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

Machining OD of pipe from 2” up to 84”



Pipe Cutting and Beveling Machine Specification

Drive Options: Pneumatic, Hydraulic, and Electric

Air requirements: 2-3m³/min

Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Electric requirements: 220V/AC 50/60Hz
Feed mode: Star wheel, automatically
Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Pipe Cutting and Beveling Machine Beveling type

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

Pipe Cutting and Beveling Machine SFM Tools

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site











Pipe Cutting and Beveling Machine Models Dimension



Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Model A (mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174

















































Pipe Cutting and Beveling Machine Manufacture



Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Portable Lightweight Hydraulic Pipe Cutting Beveling Onsite Machine for Construction

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

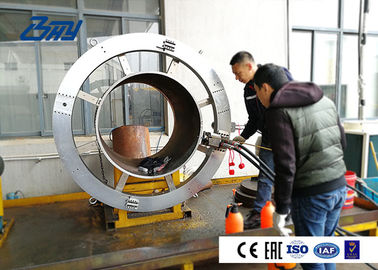

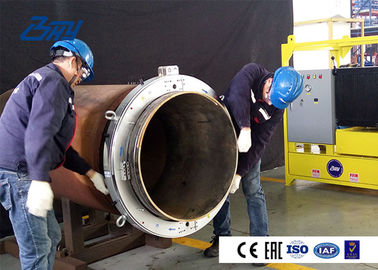

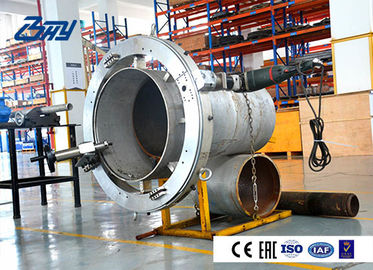

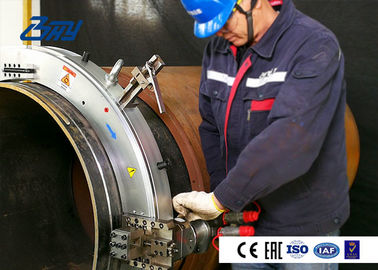

Pipe Cutting and Beveling Machine Working on site





48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe 11

48" 60" Pipe Cutting And Beveling Machine Hydraulic Drive Portable Cold Cutters For Pipe 12
