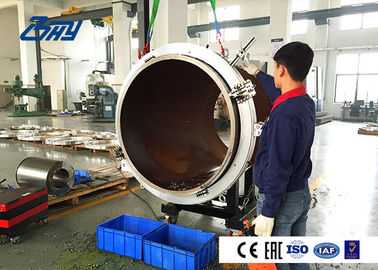

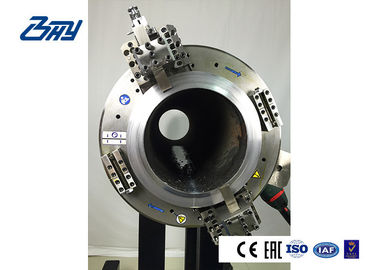

Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types

Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types
Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types

Large Image :  Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0612H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0612H Drive Mode: Hydraulic
Feed Method: Star Wheel System Application Range (O.D.): 6" - 12"(168.3-323.9mm)
Hydraulic Requirements: 65L/min,10MPA Wall Th.: ≤80mm
Net Weight: 45kg More: All Standard Accessories Included
Highlight:

split frame machine

,

cold cutting pipe equipment

CNC Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types



Product Introduction

This machine, pipe cutting and bevelling machine adopts the planet gear decelerator to moderate, the awl gear wheel transmission of arc tooth rotates the round ring tooth to enclose, the main frame Can separated it for two; Cut and bevel machine is suitable for the tube to cut off; Knife rest slippery platform the knife moves automatically, can finish cutting, slope mouth meanwhile; It is simple to operate, it is safe and reliable



Basic Info.

Model SFM0612H
Drive Mode Hydraulic
Hydraulic Requirements 65L/min,10MPA
Application Range (O.D.) 6" - 12"
Wall Thickness ≤80mm
Net Weight 45kg
Feed Method Star wheel system
Feed 0.08mm/r
                All standard accessories included



Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire



Product Features

■ Split frame structure, can be quickly install

Cold Cutting and Beveling, no heat affected zones

Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

Machining OD of pipe from 2” up to 84”



Specification

Drive Options: Pneumatic, Hydraulic, and Electric

Air requirements: 2-3m³/min

Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Electric requirements: 220V/AC 50/60Hz
Feed mode: Star wheel, automatically
Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy


Beveling type

Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 0





Manufacture



Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 1Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 2

Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 3Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 4Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 5

Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 6

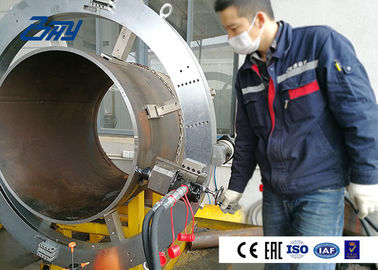

Working On Site


Cutting And Beveling Machine,Hydraulic Pipe Tools With Different Bevel Types 7
