Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Bohyar | Drive Mode: | Electric |
|---|---|---|---|
| Item No.: | BPP9E | Wall Thickness: | ≤15mm |
| Rotating Speed: | 16rpm | Processing Range: | 80-240mm |
| High Light: | electric pipe beveler,electric pipe cutter |
||

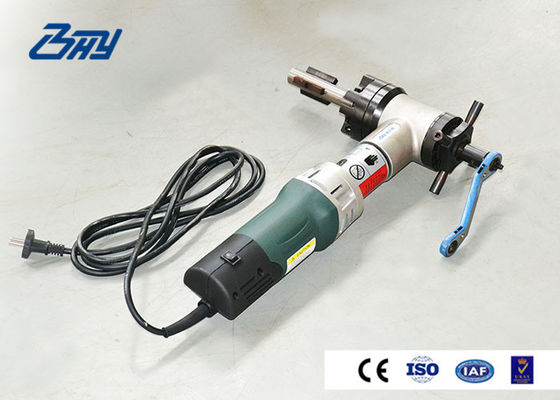

Inner mounted pipe beveling machines can be tightened to the internal wall of the pipe end, drive the cutter head to rotate through multi-stage planetary reducer and then bevel small-diameter pipes. The applicable inside diameter of pipes for our pipe beveling machine is up to 240 mm (if the pipe to be beveled is larger than this scope, please choose our split frame machines).
■ Compact structure and good appearance, high strength aluminum body
■ Lightweight and high-strength aluminum - ensure portability.
■ Interchangeability of components - allows accessories & tool slides to mount to multiple ring sizes
■ Cold machining - no heat affected zones.
■ Precision-manufactured tool slides - ensure absolute rigidity.
■ Quick installation, positioning the machine in the center of the tube and install the appropriate tool to complete the preparation.
■ Well-adapted, you can make the speed adjust depend on the working conditions.
Technical Parameters
Tools
| Name | Quantity | Description |
| Flain tool | 1 | Flain end face(0° ) |
| Bevel tool | 1 | Chamfer(30° ) |
| Bevel tool | 1 | Chamfer(37. 5° ) |
| Bevel tool | 1 | Chamfer(15° ) |
| Bevel tool | 1 | Chamfer(37° ) |
The tools attached to the products upon delivery are all made of high-speed steel and applicable to process all types of carbon steel. Their types are the five tools in the above diagram.
■ During installation, the tools should not touch the feed spindle and the expansion block.
■ The expansion block should not be stretched too deep into the pipe and keep about 20 mm from the pipe end face.
■ During processing, control the feed speed based on cutting conditions to avoid damage of blades and parts in the machine; In case of vibration of the machine or uneven bevel face, timely tighten the expansion hand wheel to prevent the looseness of the expansion, which may cause damages to the machine.
During installation, the tools should not touch the feed spindle and the expansion block.
■ The expansion block should not be stretched too deep into the pipe and keep about 20 mm from the pipe end face.
■ During processing, control the feed speed based on cutting conditions to avoid damage of blades and parts in the machine; In case of vibration of the machine or uneven bevel face, timely tighten the expansion hand wheel to prevent the looseness of the expansion, which may cause damages to the machine.
Warranty Information: The BPP pipe beveling machine produced by Bohyar has a warranty period of one year. In case of any quality problem during the warranty period, we will provide free maintenance and repairment service.
Feedback: We will highly appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
