Name: | Pipe Cutting & Beveling Machine, | Drive Mode: | Electric |
---|---|---|---|
Bevel Type: | V,Y,J,compound Shaped | Tube Material: | Stainless Steel |
Brand: | Bohyar | Structure: | Split Frame Structure |
Highlight: | Stainless Steel portable pipe beveling machine,30mm clamshell pipe cutter |

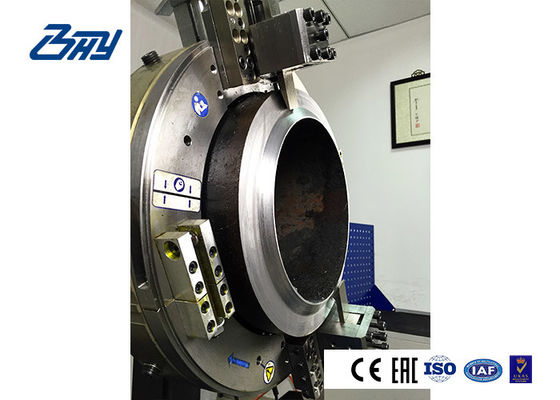

Stainless Steel Pipe Cutting & Beveling Machine, 30mm wall thickness
SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,
with which cutting and beveling can be conducted at the same time.
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
Models
Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) | Drive mode |
SFM0206 | 2"~ 6" | 30 | 35 |
Pneumatic Hydraulic Electric |
SFM0408 | 4"~ 8" | 40 | 40 | |
SFM0612 | 6"~12" | 80 | 45 | |
SFM0814 | 8"~14" | 100 | 55 | |
SFM1218 | 12"~18" | 100 | 70 | |
SFM1420 | 14"~20" | 100 | 76 |
Electric Hydraulic |
SFM1824 | 18"~24" | 100 | 123 | |
SFM2026 | 20"~26" | 100 | 130 | |
SFM2430 | 24"~30" | 100 | 142 | |
SFM2632 | 26"~32" | 100 | 150 | |
SFM3036 | 30"~36" | 100 | 159 | |
SFM3642 | 36"~42" | 100 | 179 | |
SFM4248 | 42"~48" | 100 | 198 | |
SFM4860 | 48"~60" | 100 | 642 | |
SFM6072 | 60"~72" | 100 | 730 | |
SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
