High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel

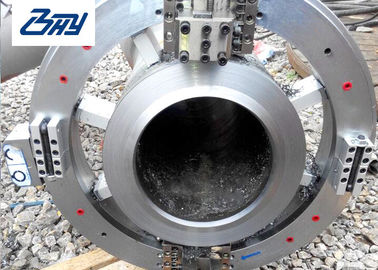

Large Image : High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	BHY
Certification:	ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number:	SFM1218H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	Aluminum case, wooden case or metal packing case
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T,
Supply Ability:	1000 sets/year

Contact Now

Detailed Product Description

Name:	Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel	Drive Mode:	Hydraulic
Max Wall Thickness:	100mm	Business Parters:	CNPC, SINOPEC, CNOOC Etc.
Material:	High-strength Aeronautical Aluminum	Processing Range:	12"-18"
Net Weight:	70kg	Hydraulic Requirements:	65L/min,10MPA
Highlight:	split frame pipe cutting machine , split frame machine

High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

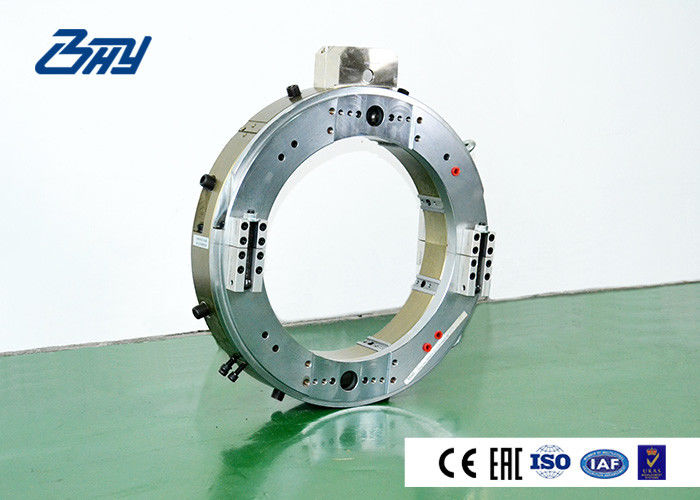

High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel 0

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Dimension and Selection

High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel 1

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model	A(mm)	B(mm)	C(mm)	D (mm)	E (mm)	F (mm)	G(mm)
SFM0206	176	70	122	176	225	253	164
SFM0408	228	70	122	176	225	253	164
SFM0612	332	70	122	176	225	253	164
SFM0814	364	70	122	176	225	253	164
SFM1016	416	70	122	176	225	253	164
SFM1218	468	70	122	176	225	253	164
SFM1420	518	70	122	176	225	253	164
SFM1824	622	102	98	176	235	253	174
SFM2026	674	102	98	176	235	253	174
SFM2430	776	102	98	176	235	253	174
SFM2632	826	102	98	176	235	253	174
SFM3036	928	102	98	176	235	253	174
SFM3238	1006	102	98	176	235	253	174
SFM3642	1082	102	98	176	235	253	174
SFM4248	1236	102	98	176	235	253	174
SFM3648	1296	140	220	276	235	253	174
SFM4860	1600	140	220	276	235	253	174
SFM6072	1905	140	220	276	235	253	174
SFM7284	2210	140	220	276	235	253	174

Bevel Type
High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel 2

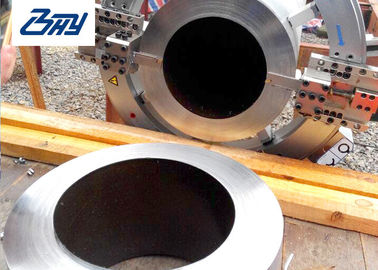

Working on site

■ Project: Pipe prefabrication plant

■ Pipe material: SS316

■ Pripe O.D. : 914mm

■ Pipe thickness: 80mm

High Strength Hydraulic Pipe Beveling Machine Clamshell Pipe Cutter For Stainless Steel 3
