Product Details:
Payment & Shipping Terms:
|
Brand Name: | Bohyar | Drive Mode: | Hydraulic Drive |
---|---|---|---|
Height: | 205in (5207mm) | Width: | 118.8in (3017mm) |
Depth: | 43in (1092mm) | Weight: | Call |
Highlight: | diamond cable saw,diamond rope saw |

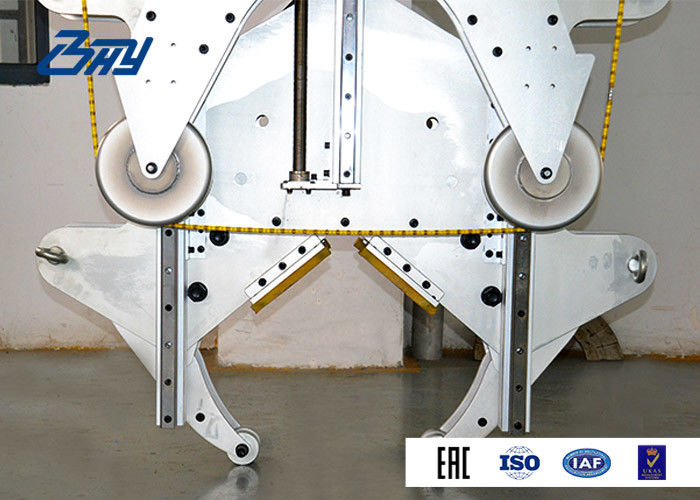

Diamond Wire Saw Machine
Bohyar engineering material technology company is the first one in China to achieve own research and development ability of producing diamond wire saw. The subsea diamond wire saw is designed for underwater cutting of horizontal or vertical pipes, casings and structure, with five models that cut from 4in to 84in O.D. Running on hydraulic power, the wire saw is controlled remotely with dedicated HS controls, topside control panels or by ROV control.
The underwater submarine pipeline diamond wire saw which is designed for subsea cutting of pipes, structure and concrete. It is applied in platform operations, shallow sea operations and deep sea operations.
■ Lightweight planetary feed drive
■ Large diameter high contact area wire drive wheels.
■ Hydraulic wire drive motor w/overhung bearing support.
■ Lift interfaces for vertical or horizontal deployment.
■ Lightweight aluminum plate construction.
■ User replaceable clamp contact pads and wheel inserts.
■ Optional TCP Topside Control Panel or by ROV control.
Model | DWS 0416 | DWS 1230 | DWS 1636 | DWS3052 | DWS604 |
Maximum Pipe Capacity |
16in (406mm) |
30in (762mm) |
36in (914mm) |
52in (1321mm) |
84in (2134mm) |
Minimum Pipe Capacity |
4in (102mm) |
12in (305mm) |
16in (406mm) |
30in (762mm) |
60in(1524mm) |
Height | 55in (1397mm) |
82.5in (2096mm) |
92.5in (2350mm) |
127in (3226mm) |
205in (5207mm) |
Width | 44in (1118mm) | 63.75in (1619mm) |
69.75in(1772mm) |
87.25in(2216mm) |
118.8in (3017mm) |
Depth | 28in (711mm) |
30in (762mm) |
32in (813mm) |
43in (1092mm) |
43in (1092mm) |
Weight | 730lbs(331Kg) |
1000lbs (454Kg) |
1200lbs (544Kg) |
1600lbs (726Kg) | call |
Self-Adjusting Auto-feed
The diamond wire saw features a unique self-adjusting auto-feed system that controls wire bend and automatically matches the feed rate to the cutting rate. With the ability to adjust the feed until the cutting action catches up, DWS delivers more efficient cutting action with enhanced operator safety and greatly extended wire life.

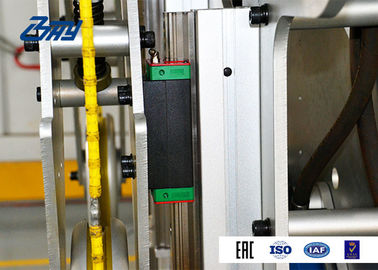

Self-Regulating tensioning system
Spring and cylinder can maintain a constant tension of the diamond rope, which effectively prevent excessive tension causing damage to the machine, enhance the safety of the operator and greatly extend the rope life.
Safety is our priority when diamond wire saw machines are designed, and ergonomics is also taken into consideration to ensure product safety and reliability.
■ Before operation, please carefully check for loose connections, blocked rotating parts, or any damage and other factors that may affect the operation or lead to hidden dangers.
■ The applicable scope of the machine should be strictly followed for pipe processing.
■ Do not touch electric switches and buttons with wet hands to avoid electric shock.
■ Before operation, ensure the operators are kept away from any live part such as motors and cables.
■ It is strictly forbidden to transform the machines or replace accessories with those not produced by the original manufacturer without approval.
Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.
Feedback: To constantly improve the satisfaction of users with the product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
