| Name: | Travel Cutter, Trav L Cutter | Model: | TC0672 |
|---|---|---|---|
| Drive: | Hydraulic | Processing Range: | 6''-72''(153mm-1829mm） |
| Wall Thickness: | 5mm-25mm | Cutter Speed: | Adjustable 0-60RPM |
| Hydraulic Requirements: | 15 Gpm @ 1500 Psi | Feeding Method: | Reliable Anti-slip Chain Drive |
| Installation Method: | Vertical Or Horizontal Installation | Dimensions: | 610x510x280（mm） |
| Transport Size: | 1040x635x457（mm） | NET Weight:: | 100kg |
| Shipping Weight: | 190Kg | Hydraulic Power Source: | Electric Drive Or Diesel Engine |
Adjustable Speed Travel Cutter, Climbing Pipe Bevel Cutter ,Adjustable Speed, Reliable anti-slip chain drive
Model:TC0672

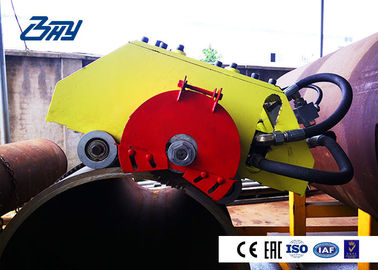

Travel Cutter Product Introduction
The climbing pipeline cutting and beveling machine (Travel Cutter) is the pipe processing equipment independently developed by Bohyar based on the market and prospect of pipeline service industry. The product is portable, precise, and efficient and in modular design, fully meeting customer demands, it can cut and bevel all common pipe materials, so this travel cutter is the perfect choice for the cutting and beveling of various pipes.
■ Horizontal and vertical cutting
The Travel Cutter will operate on horizontal or vertical pipe, in the field or in the shop.
■ Safe, Cold Cutting
Bohyar’s Travel Cutter can be used in explosive conditions, on natural gas, crude, product and fuel lines.
■ Fast, Reliable
A standard wall pipe can be cut and beveled with a cutting speed of approximately 2 minutes per 1'' of pipe diameter. Cutting time varies for heavier walls and harder alloys.
■ Corrosion resistance
Use stainless steel screws, special bearings, seals and zinc layer including attachment prevents corrosion due to the long-term job in brine that may arise.
| Name | Travel Cutter, Trav L Cutter,Climbing Pipe Cutting Beveling Machine |
| Model | TC0672 |
| Processing Range | 6''-72''(153mm-1829mm) |
| Drive Mode | Hydraulic |
| Function | Cutting and Beveling, Cold cutting |
| Wall thickness | 5mm-25mm |
| Cutter speed | Adjustable 0-60RPM |
| Hydraulic requirements | 15 gpm @ 1500 psi(57L/Min,106bar) |
| Dimensions | 610x510x280(mm) |
| Transport size | 1040x635x457(mm) |
| NET Weight: | 100kg |
| Shipping weight | 190Kg |
| Feeding method | Reliable anti-slip chain drive |
| Hydraulic power source | Electric drive or diesel engine |
| Machinable material | Carbon steel, alloy steel, stainless steel |
Chain Length
|
Pipe Size |
Type DI/S |
Pipe Dia. |
Add on Length² |
Total Length |
|
6" |
S |
6.625" (168mm) |
0 |
42" (1067mm) |
|
Di |
6.90" (175mm) |
|||
|
8" |
S |
8.625" (219mm) |
5" (127mm) |
47" (1194mm) |
|
Di |
9.05" (230mm) |
|||
|
10" |
S |
10.75" (273mm) |
8" (203mm) |
55" (1397mm) |
|
Di |
11.10" (282mm) |
|||
|
12" |
S |
12.75" (324mm) |
6" (152mm) |
61" (1549mm) |
|
Di |
13.20" (335mm) |
|||
|
14" |
S |
14.00" (356mm) |
2" (51mm) |
63" (1600mm) |
|
Di |
15.30" (389mm) |
|||
|
16" |
S |
16.00" (406mm) |
6" (152mm) |
69" (1752mm) |
|
Di |
17.40" (442mm) |
|||
|
18" |
S |
18.00" (457mm) |
7" (179mm) |
76" (1930mm) |
|
Di |
19.50" (495mm) |
|||
|
20" |
S |
20.00" (508mm) |
2" (51mm) |
78" (1981mm) |
|
Di |
21.60" (549mm) |
7" (179mm) |
83" (2108mm) |
|
|
24" |
S |
24.00" (610mm) |
13" (330sm) |
91" (2312mm) |
|
Di |
25.80" (655mm) |
96" (2438mm) |
||
|
30" |
S |
30.00" (762mm) |
20" (508mm) |
111" (2819mm) |
|
Di |
32.00" (813mm) |
116" (2946mm) |
||
|
36" |
S |
36.00" (915mm) |
17" (432mm) |
128"(3251mm) |
|
Di |
38.30" (973mm) |
133" (3378mm) |
||
|
42" |
S |
42.00" (1067mm) |
19" (482mm) |
147" (3734mm) |
|
Di |
44.50" (1130mm) |
152" (3861mm) |
||
|
48" |
S |
48.00" (1219mm) |
17" (432mm) |
164" (4166mm) |
|
Di |
50.80" (1290mm) |
21" (533mm) |
173" (4394mm) |
|
|
54" |
S |
54.00" (1372mm) |
20" (508mm) |
184" (4674mm) |
|
Di |
57.26" (1454mm) |
194" (4928mm) |
||
|
60" |
S |
60.00" (1524mm) |
18" (458mm) |
202" (5131mm) |
|
Di |
61.61" (1565mm) |
13" (330mm) |
207" (5258mm) |
|
|
72" |
S |
72.00" (1829mm) |
38" (965mm) |
240" (6096mm) |
■ Provide adequate lighting to use the equipment, in accordance with worksite or local regulations.
■ Keep work area clear. Keep all clutter and nonessential materials out of the work area. Only people directly involved with the work being performed should have access to the area.
■ Make sure the equipment is stable when attached to the work piece for the operation. Ensuring stability of the installed tool is the responsibility of the operator.
Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.
