Product Details:
Payment & Shipping Terms:
|
| Model: | Cold Pipe Cutting And Bevelling Machine | Drive Mode: | Electric |
|---|---|---|---|
| Structure: | Split Frame | Function: | Cut, Bevel, Counterbore, Drill And Mill Pipes |
| Bevel Type: | V,Y,J,compound Shaped | Brand: | Bohyar |
| High Light: | Split Frame portable pipe beveling machine,12 inch clamshell pipe cutting machine |
||

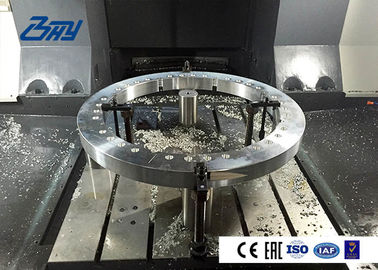

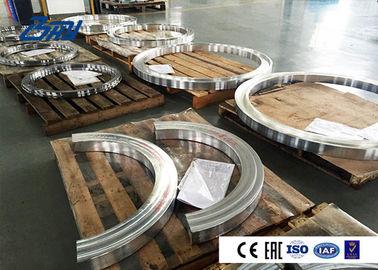

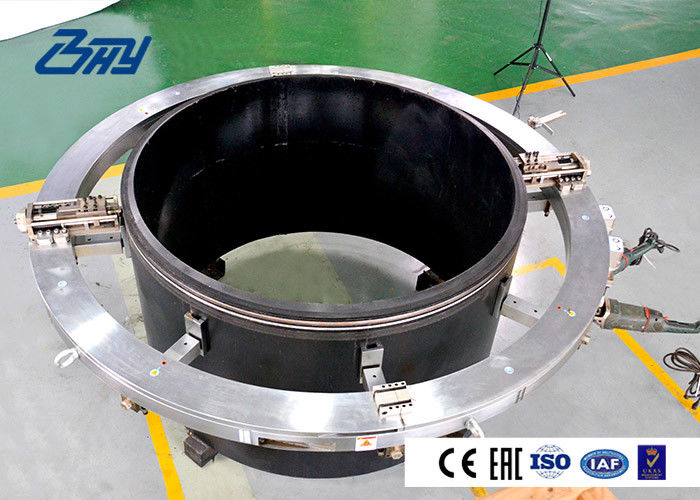

Split Frame Cold Pipe Cutting And Bevelling Machine
Cold Pipe Cutting And Bevelling Machine Characteristic:
■ Oil and gas field
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
| Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) | Drive mode |
| SFM1824 | 18"~24" | 100 | 123 |
Electric Hydraulic |
| SFM2026 | 20"~26" | 100 | 130 | |
| SFM2430 | 24"~30" | 100 | 142 | |
| SFM2632 | 26"~32" | 100 | 150 | |
| SFM3036 | 30"~36" | 100 | 159 | |
| SFM3642 | 36"~42" | 100 | 179 | |
| SFM4248 | 42"~48" | 100 | 198 | |
| SFM4860 | 48"~60" | 100 | 642 | |
| SFM6072 | 60"~72" | 100 | 730 | |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
