Product Details:
Payment & Shipping Terms:
|
Model: | SFM0206H | Drive Mode: | Hydraulic |
---|---|---|---|
Dimension: | 910*810*330mm | Net Weight: | 35kg |
Gross Weight: | 69kg | Feed Method: | Star Wheel System |
High Light: | split frame pipe cutting machine,split frame machine |

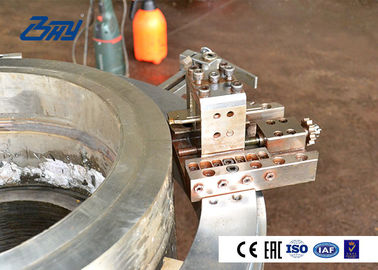

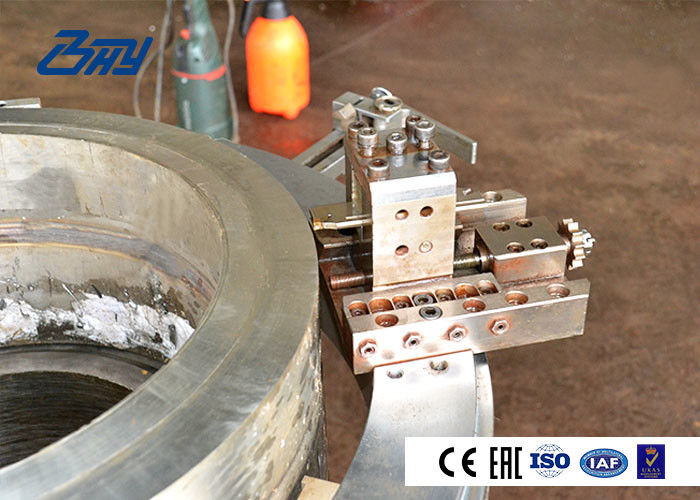

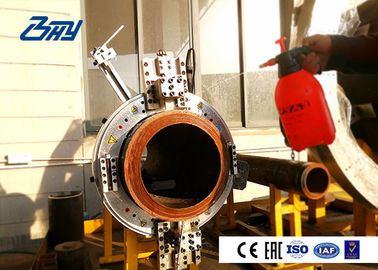

Products of SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.
■ Split frame technology, easy to install in the pipeline;
■ Out-mounted, clamping by multipoint jaws;
■ Cold cutting, don’t influence the pipe’s material;
■ Auto feed, cut and bevel the pipe at the same time, cost-effective;
■ Three types of drive motors: electric, pneumatic and hydraulic;
■ Can process material: carbon steel, alloy steel, stainless steel etc.
■ Precise cutting and beveling tools with high efficiency and long service life.
Machine | SFM machine | 1PC |
Drive Mode | Electric/pneumatic/hydraulic Motor | 1PC |
Components | Aluminum alloy/wooden packing case | 1PC |
Cutter holder | 1PC | |
Cutting blade | 1PC | |
Tools | Rubber hammer, Spray bottle, Square, Wrench set | 1SET |
Documents | Operating manual, SFM | 1PC |
Certificate of conformity, SFM | 1PC | |
U-disk | 1PC |
We have successfully completed this following service project in Henan, China with SFM4860 machine and our own service people through tough work environment and got the commendatory letter from our client. In China, we are the first maker to enter the power plant industry among all the domestic factories of pipe cutting and beveling machines which means our quality is highly comparable to the world-class brands.
Q: Do you have any foreign agents?
A: Yes, of course. We pay attention to the foreign market and expand the foreign continuously through our agents in Russia, Korea, Sudan, Pakistan, Malaysia and so on. We are willing to develop new agents in other countries.
Q: Which certificate does your company have?
A: We have many certificates such as high-tech enterprises, high-tech product certification, high-tech product certification, ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates of our machines.
