Product Details:
Payment & Shipping Terms:
|
Brand Name: | Bohyar | Material: | High Strength Aluminum |
---|---|---|---|
Item No.: | BPP1E Kit3 | Wall Thickness: | ≤6mm |
Rotating Speed: | 3-70rpm | Rated Power: | 1.43kw |
High Light: | cold pipe cutting and bevelling machine,pipe cold cutting machine |

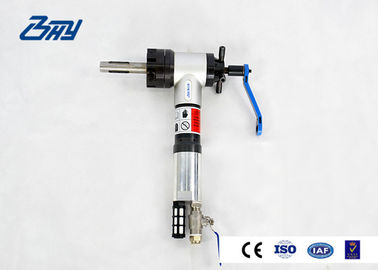

Inner mounted pipe beveling machines can be tightened to the internal wall of the pipe end, drive the cutter head to rotate through multi-stage planetary reducer and then bevel small-diameter pipes. The applicable inside diameter of pipes for our pipe beveling machine is up to 240 mm (if the pipe to be beveled is larger than this scope, please choose our split frame machines)
■ Portability: Our BPP series are packed with suitcase, which is convenient for carrying and allows you to finish processing outdoors.
■ Quick installation: After being taken out from the suitcase, the machine will be ready only by positioning it at the center of the pipe through the ratchet wrench and equipping it with a suitable cutter. The process will not exceed 3 minutes. The machine will start to work after pressing down the motor button.
■ Safety and reliability: Through multi-stage deceleration by the internal bevel gear of the angle grinder, the planetary reducer and the internal bevel gear of the main shell, the machines can operate under slow rotating speed while keeping large torque, which makes the beveled end smooth and flat and in high quality, and extends the service of the cutter.
Model | Processing range(IDmm) | Wall thic (mm) |
Rated power (kw) |
Rotating speed(rpm) |
BPP1E kit1 | 12.5-15 | ≤3 | 1.43 | 3-70 |
*Electric: Rated voltage of 220V, 50/60Hz
Installation & Processing
■ Measure the inside diameters of the pipe to be processed and choose a suitable machine and expansion block.
■ Select the appropriate block, place it on the bottom of the expansion block to ensure the top surface of the expansion block remain horizontal without any inclination, and rotate the sleeve anticlockwise to tighten the expansion block and, ensure that the machine is firmly fixed in the pipeline.
■ Choose a tool with suitable angle listed in the tool table based on the processing requirements, install it on the cutter head of the machine and tighten the bolts to fix the tools.
■ Rotate the feed hand wheel and extend the feed spindle Loosen screw and feed.

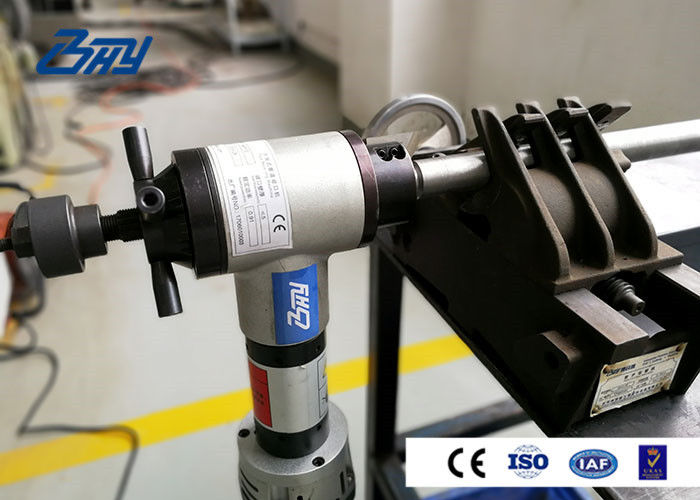

■ Stretch the machine expansion mechanism into the pipe, and reserve sufficient feed space between the tool on the cutter head and the pipe end face.
■ Rotate the expansion sleeve with the ratchet wrench while adjusting the position of the machine to ensure the feed spindle and the center of the pipe is concentric; Tighten nuts on the expansion sleeve with the ratchet wrench after determining the position.
■ Start the motor. Rotate the feed handwheel to make the cutting edge contact with the pipe wall, and then bevel.
BPP Pipe Beveling Machine
