Name: | ID Mount Electric Pipe Beveling Machine And Tube Beveller | Drive Mode: | Electric |
---|---|---|---|
Material: | High Strength Aluminum | Processing Range: | 12.5-15mm(ID) |
Wall Thickness: | ≤3mm | Rated Power: | 1.43kw |
Electric Requirement: | 220-230V 1PH 50/60HZ | Warranty: | One Year |
Highlight: | electric pipe cutting machine,electric pipe cutter |

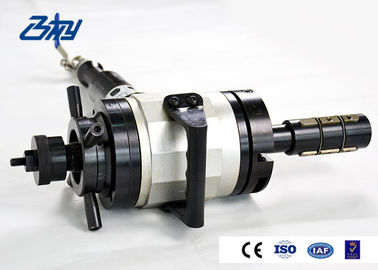

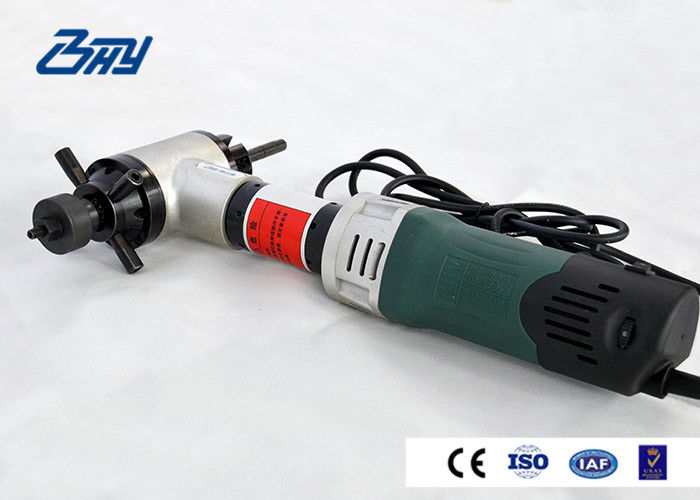

ID Mount Equipment Electric Pipe Beveling Machine Pipe Machining And Tube Beveller
ID Mount Electric Pipe Beveling Machine and Tube Beveller is the pipe processing equipment independently developed by our company based on the market and prospect of the pipe service industry.
The products are portable, precise, efficient and in modular design, fully meeting customer demands.
It's designed for simultaneous facing and beveling tubes and pipes (including carbon steel, alloy steel and stainless steel) from 12.5mm to 240mm I.D. up to a wall thickness of 0.75" (18mm).
BPP series of pipe beveling machines are widely applied in boiler plants, pressure vessels, heat exchangers, power plant, nuclear power, petroleum, chemical engineering, natural gas, pharmacy, pipe prefabrication plant, pipeline installation engineering, rush-repair work, etc.
Technical Parameters
Brand | Bohyar |
Model | BPP6E |
Drive Mode | Electric |
Electric requirement | 220-230V 1PH 50/60HZ |
Power | 1.43KW |
Application Range (I.D.) | 65-159mm |
Wall Thickness | ≤20mm |
Rotating speed | 34rpm |
All standard accessories included |
*Electric: Rated voltage of 220V, 50/60Hz
Tools
Drawing | Name | Quantity | Description |
![]() |
Flain tool | 1 | Flain end face(0° ) |
|
Bevel tool | 1 | Chamfer(30° ) |
![]() |
Bevel tool | 1 | Chamfer(37. 5° ) |
![]() |
Bevel tool | 1 | Chamfer(15° ) |
![]() |
Bevel tool | 1 |
Chamfer(37° ) |
Product series
Model |
Processing range (IDmm) |
Wall thickness (mm) |
Rated power (kw) |
Rotating speed (rpm) |
BPP1E kit1 | 12.5-15 | ≤3 | 1.43 | 3-70 |
BPP1E kit2 | 15-20 | ≤5 | 1.43 | 3-70 |
BPP1E kit3 | 20-28 | ≤6 | 1.43 | 3-70 |
BPP3E/ BPP3P | 26-79 | ≤15 | 1.43 | 3-70 |
BPP3PE | 36-90 | ≤15 | 1.43 | 3-50 |
BPP4E/ BPP4P | 45-105 | ≤20 | 1.43 | 34 |
BPP6E/ BPP6P | 65-159 | ≤20 | 1.43 | 34 |
BPP9E | 80-240 | ≤15 | 1.43 | 16 |
*Electric: Rated voltage of 220V, 50/60Hz
Installation & Processing
■ Measure the inside diameters of the pipe to be processed and choose a suitable machine and expansion block.
■ Select the appropriate block, place it on the bottom of the expansion block to ensure the top surface of the expansion block remain horizontal without any inclination, and rotate the sleeve anticlockwise to tighten the expansion block and, ensure that the machine is firmly fixed in the pipeline.
■ Choose a tool with suitable angle listed in the tool table based on the processing requirements, install it on the cutter head of the machine and tighten the bolts to fix the tools.
■ Rotate the feed hand wheel and extend the feed spindle Loosen screw and feed.
■ Stretch the machine expansion mechanism into the pipe, and reserve sufficient feed space between the tool on the cutter head and the pipe end face.
■ Rotate the expansion sleeve with the ratchet wrench while adjusting the position of the machine to ensure the feed spindle and the center of the pipe is concentric; Tighten nuts on the expansion sleeve with the ratchet wrench after determining the position.
■ Start the motor. Rotate the feed handwheel to make the cutting edge contact with the pipe wall, and then bevel.
