Product Details:
Payment & Shipping Terms:
|
| Model: | SFM0612E | Drive Mode: | Electric |
|---|---|---|---|
| Processing Range: | 6"-12" | Max Wall Thickness: | 80mm |
| Gross Weight: | 75kg | Feed Method: | Star Wheel System |
| High Light: | electric pipe cutting machine,electric pipe cutter |
||
Product Introduction

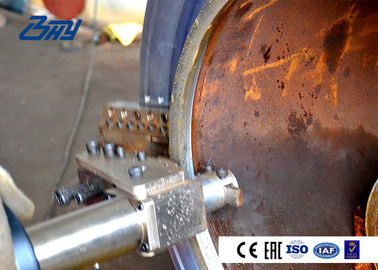

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.
Industry Application
The SFM Series of Pipe Cutting and Beveling Machines are widely used in long-distance transport pipeline, power plant, nuclear power, petroleum, chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline installation engineering, rush-repair work, etc. Our products play an important role in these fields.
Models
| Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 |
Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 | |
| SFM0612 | 6"~12" | 80 | 45 | |
| SFM0814 | 8"~14" | 100 | 55 | |
| SFM1218 | 12"~18" | 100 | 70 | |
| SFM1420 | 14"~20" | 100 | 76 |
Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 | |
| SFM2026 | 20"~26" | 100 | 130 | |
| SFM2430 | 24"~30" | 100 | 142 | |
| SFM2632 | 26"~32" | 100 | 150 | |
| SFM3036 | 30"~36" | 100 | 159 | |
| SFM3642 | 36"~42" | 100 | 179 | |
| SFM4248 | 42"~48" | 100 | 198 | |
| SFM4860 | 48"~60" | 100 | 642 | |
| SFM6072 | 60"~72" | 100 | 730 | |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
| Drive mode | Pneumatic | Air requirements | 2-3m³/min |
| Hydraulic | Hydraulic requirements | 65L/min,10MPa(15.8GPM,1500PSI) | |
| Electric | Electric requirements | 220V/AC | |
| Feed method | Star wheel system | Feed | 0.08mm/r |
| Finish | Anodizing sand blasting | Packaging | Aluminum alloy,metal packing case or wooden box |

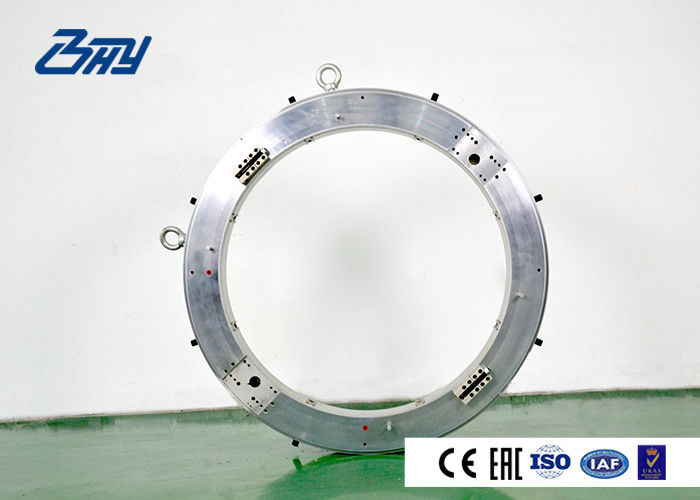

■ It is in split frame structure, and can be quickly installed to any position of external wall of operational pipeline with its clamps, occupying small space.
■ It can process pipes made from various grades of carbon steel, alloy steel, stainless steel and other metals.
■ Fixed rings use lightweight and high-strength aeronautical aluminum to ensure portability
■ Cold Cutting-No heat affected zones
■ Equipped with precise machining tools, with high efficiency and long service life
