Product Details:
Payment & Shipping Terms:
|
Model: | SFM206H | Drive Mode: | Hydraulic |
---|---|---|---|
Net Weight: | 35kg | Brand: | Bohyar |
Structure: | Split Frame Structure | Wall Th.: | ≤30mm |
Application Range (O.D.): | 2" - 6" (60.3-168.3mm) | Cutting: | Cold Cutting |
High Light: | split frame machine,cold cutting pipe equipment |

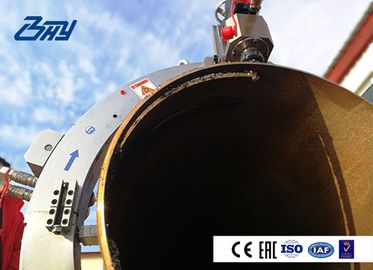

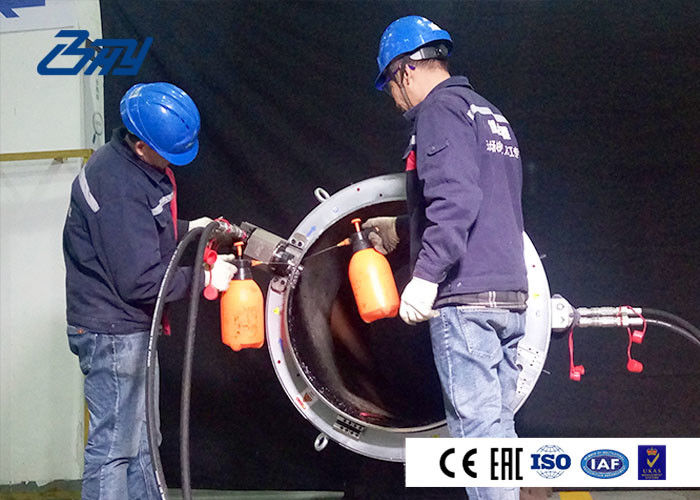

Developed for on site use in pipelines, machine body is split frame type allowing set up of machine at any point along pipelines.

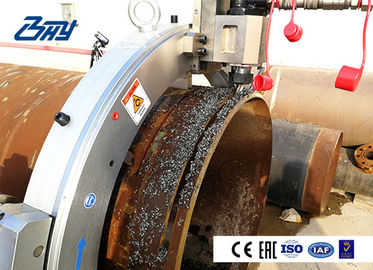

The Hydraulic Pipe Cutting Beveling Machine And Pipe Tools manufactured by Bohyar can cut and bevel the pipe end or middle of pipe by clamping external wall, with processing diameter up to 84 inch and maximum wall thickness of 100 mm.
Application Industries
■ Energy Field
Oil Refinery
Offshore Engineering
Power Plant
■ Construction and Construction Equipment
Water and Gas
Water and Treatment
Heater
■ Process Engineering
Electronic Equipment
Medicine
Biotechnology
Food and Beverage Industry
Specifications
Model | SFM0408H |
Drive Mode | Hydraulic |
Hydraulic Requirements | 65L/min,10MPA |
Application Range (O.D.) | 2" - 6" |
Wall Thickness | ≤30mm |
Net Weight | 35kg |
Feed Method | Star wheel system |
Feed | 0.08mm/r |
All standard accessories included |
■ Thick-wall tool slide (conventional): It can be used to SFM models from 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses.
■ Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.
■ Drilling and milling tool slide (only for hydraulic): it can achieve pipe cutting by using the drilling and milling. It is a high-strength tool slide, smooth cutting and simple operation.
Models Dimension
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model | A (mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
SFM0206 | 176 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0408 | 228 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0612 | 332 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM0814 | 364 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1218 | 468 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1420 | 518 | 70 | 122 | 176 | 225 | 253 | 164 |
SFM1824 | 622 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2026 | 674 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2430 | 776 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM2632 | 826 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3036 | 928 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3238 | 1006 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3642 | 1082 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM4248 | 1236 | 102 | 98 | 176 | 235 | 253 | 174 |
SFM3648 | 1296 | 140 | 220 | 276 | 235 | 253 | 174 |
SFM4860 | 1600 | 140 | 220 | 276 | 235 | 253 | 174 |
SFM6072 | 1905 | 140 | 220 | 276 | 235 | 253 | 174 |
SFM7284 | 2210 | 140 | 220 | 276 | 235 | 253 | 174 |
