Model: | SFM1218E Portable Pipe Cutting And Beveling Machine | Working Range: | 12"-18"(323.9-457.2mm) |
---|---|---|---|
Drive Mode: | Electric | Finish: | Anodizing Sand Blasting |
Function: | Cut, Bevel, Counterbore, Drill And Mill Pipes | Beveling Tools: | Clip-type, Ordinary Beveling Tools |
Certificates: | CU-TR, CE, ISO14001,ISO18001,ISO9001 | ||
High Light: | pipe bevel cutter,bevel cutting machine for pipes |

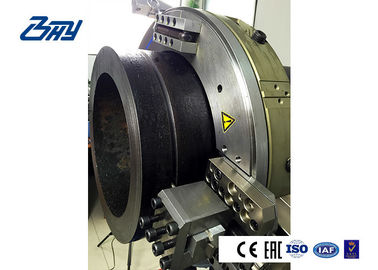

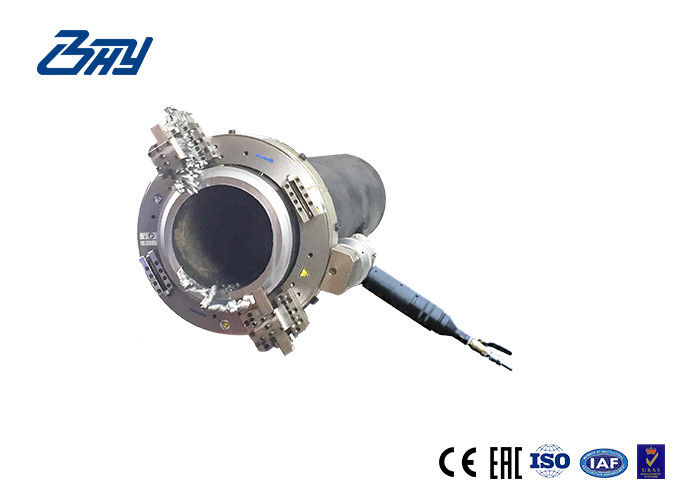

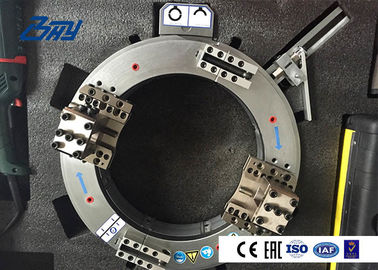

12" - 18" Electric Portable Pipe Cutting And Beveling Machine Customized Tools
Portable Pipe Cutting And Beveling Machine Main Features:
1. The portable pipe cutting and beveling machine adopt high-performance drive which is powerful and steady.
2. Automatic feed mode pipe cutting and beveling in the sametime.
3. The series are portable out-mounted pipe cutting and beveling machine with the following advantages:lighter weight
,minimal radial space,easy to operate.
Portable Pipe Cutting And Beveling Machine Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Portable Pipe Cutting And Beveling Machine Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy
Beveling type
SFM Tools
Models Dimension
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model |
A (mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
SFM0206 |
176 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0408 |
228 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0612 |
332 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0814 |
364 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1218 |
468 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1420 |
518 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1824 |
622 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2026 |
674 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2430 |
776 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2632 |
826 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3036 |
928 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3238 |
1006 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3642 |
1082 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM4248 |
1236 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3648 |
1296 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM4860 |
1600 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM6072 |
1905 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM7284 |
2210 |
140 |
220 |
276 |
235 |
253 |
174 |
Manufacture
Working on site
■ Project: chemical plant repaire
■ Pipe material: 5CrMoR+00Cr19Ni10
■ Pipe O.D.: 1219mm, 350mm
■ Pipe thickness: 59mm, 30mm
