Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe

Electric Drive Cold Pipe Cutting Beveling Machine For Inconel Alloy Pipe

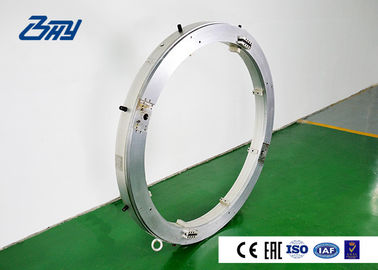

Cold Pipe Cutting Beveling Machine Introduction

Each pipe cutting beveling machine within the Hydraulic series of clamshells is engineered to operate safely and accurately even in the most demanding environments and critical applications. The rugged fixed base, steel pinion gear and high bearing count within each machine result in a rugged combination ready to perform when called upon.

Cold Pipe Cutting Beveling Machine Basic Info.

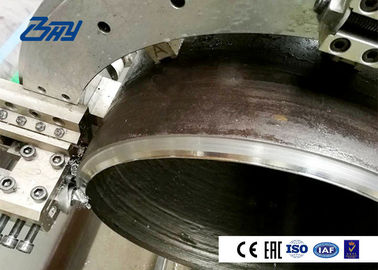

Cold Pipe Cutting Beveling Machine Bevel Type

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.

Cold Pipe Cutting Beveling Machine Features

■ Split frame technology, easy to install in the pipeline;

■ Out-mounted, clamping by multipoint jaws;

■ Cold cutting, don’t influence the pipe’s material;

■ Auto feed, cut and bevel the pipe at the same time, cost-effective;

■ Three types of drive motors: electric, pneumatic and hydraulic;

■ Can process material: carbon steel, alloy steel, stainless steel etc.

■ Precise cutting and beveling tools with high efficiency and long service life.

■ Project: oil pipe underwater

■ Pipe material: X65+inconel 625

■ Pripe O.D. : 610 mm

■ Pipe thickness: 19+3 mm
