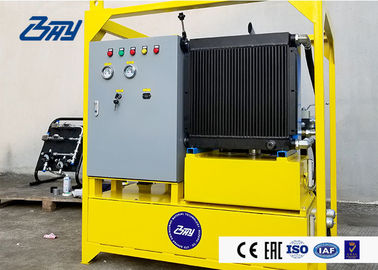

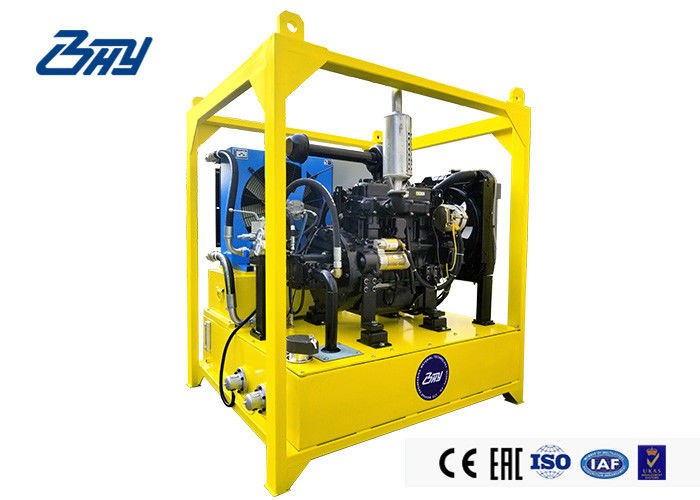

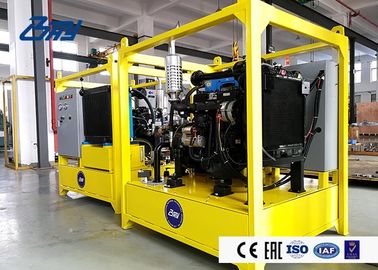

|Name:||Diesel Hydraulic Power Unit, Speed Adjustable||Electric Motor Power:||N=28KW(36HP)|
|Item No.:||HS-36||Rated Flow:||Q=90L/min|
|Rated Pressure:||P=15Mpa||Overall Size:||1386x1200x1500(mm)|
diesel driven hydraulic power units,
diesel hydraulic power pack
Diesel series of hydraulic power units have the step less speed control system to adjust different speed requirements, and we have the imported engine with the light weight , strong power and stable operation. The HS-36 diesel hydraulic power unit can heat itself in low temperature environment, it can self-heated in under -10 ºC ambient temperature, very suitable for cold season or area.
HS series of diesel hydraulic power units, can meet the requirements of various industries, such as: Petrochemical Plant, Power Station, Nuclear Power Station, , Boiler Plant, Refinery.
Diesel Hydraulic system uses imported gear pump. The output pressure is stable. It can increase the life of the tool, save the cost and improve the efficiency. The battery starts the diesel engine which drives the hydraulic pump. The hydraulic pump produces the high pressure hydraulic oil which drives the hydraulic motor to drive the load.
|Rated speed||n=2600 r/min|
■ HS-36 adopts one-piece structure, it is easy to move and makes the pipe connection easier with quick change connector.
■ The machine can work continuously within 40 ℃ temperature by the oil cooling system.
■ It can make starting, stopping and warming up function through a integrated control box.
■ With the double oil passages function, we can make drilling and cutting at the same time.
■ To ensure that users can quickly access we have the quick connector which can be plug and pull quickly.
■ Check whether the electrical component wirings are loose or false welding.
■ Check the battery power.
■ Add low temperature anti-wear hydraulic oil from the oil filler of tank to the top of fluid level meter. Fuel tank after refueling should not immediately boot unless the bubble in the tank naturally disappears. Relax the handle of the relief valve counterclockwise.
■ The distance between the diesel hydraulic power station and the used equipment is at least 5 meters.
■ It is prohibited to connect the mechanical equipment and tools which are easy to produce sparks with the diesel hydraulic power unit.
Q: Are you Manufacture?
A: Yes, we are professional manufacture with high quality and competitive price, we have our own R&D team.
Q: How long is your delivery time?
A: Around 35 days after we received the payment.
Q: How to choose the drive motor?
A: Under customer requirement, normally the electric motor is much more flexible, the hydraulic one can offer stronger power
