Product Details:
Payment & Shipping Terms:
|
Name: | Beveling Machine,Electric Stainless Steel Portable Orbital Pipe Cutter Machine,iron Pipe Cutting Beveling Machine,adjustable Size Automatic Orbital Cold Pipe Cutting Beveling Machine | Model: | SFM3036 |
---|---|---|---|
Drive Mode: | Electric | Beveling Tools: | Clip-type, Ordinary Beveling Tools |
Feed: | 0.08mm/r | Package: | Aluminum Alloy, Metal Packing Case Or Wooden Box |
Certificates: | CU-TR, CE, ISO14001,ISO18001,ISO9001 | ||
Highlight: | pipe cutter and beveler,pipe cold cutting machine |
Cutting Beveling Machine For Pipes Ordinary Beveling Tools
Hydraulic Bevel Cutting Machine Introduction
SFM Series of Pipe Cutting and Beveling Machine is the pipe processing equipment independently developed by our company based on the market and prospect of pipe service industry. The products are portable, precise, and efficient and in modular design, fully meeting customer demands, so they are the perfect choice for the cutting, beveling and end prefabrication of various pipes.
Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.
We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.
Hydraulic Bevel Cutting Machine Features
■ It is multifunctional and can be used for pipe reaming, beveling, cutting of thick-walled pipes, etc.
■ The tool slide is in high strength structure, with long service life and high processing precision;
■ Clamping pipe is simple and the expansion blocks in all models have been equipped based on the model of machines, so the clamping can be completed only by making subtle adjustment.
■ It is designed in the principles of light weight, portability and durability;
Hydraulic Bevel Cutting Machine Standard Configuration
Machine |
SFM machine |
1PC |
Drive Mode |
Electric/pneumatic/hydraulic Motor |
1PC |
Components |
Aluminum alloy/wooden packing case |
1PC |
Cutter holder |
1PC |
|
Cutting blade |
1PC |
|
Tools |
Rubber hammer, Spray bottle, Square, Wrench set |
1SET |
Documents |
Operating manual, SFM |
1PC |
Certificate of conformity, SFM |
1PC |
|
U-disk |
1PC |
Hydraulic Bevel Cutting Machine Models
Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) |
Drive mode |
SFM0206 |
2"~ 6" |
30 |
35 |
Pneumatic Hydraulic Electric |
SFM0408 |
4"~ 8" |
40 |
40 |
|
SFM0612 |
6"~12" |
80 |
45 |
|
SFM0814 |
8"~14" |
100 |
55 |
|
SFM1218 |
12"~18" |
100 |
70 |
|
SFM1420 |
14"~20" |
100 |
76 |
Electric Hydraulic |
SFM1824 |
18"~24" |
100 |
123 |
|
SFM2026 |
20"~26" |
100 |
130 |
|
SFM2430 |
24"~30" |
100 |
142 |
|
SFM2632 |
26"~32" |
100 |
150 |
|
SFM3036 |
30"~36" |
100 |
159 |
|
SFM3642 |
36"~42" |
100 |
179 |
|
SFM4248 |
42"~48" |
100 |
198 |
|
SFM4860 |
48"~60" |
100 |
642 |
|
SFM6072 |
60"~72" |
100 |
730 |
|
SFM7284 |
72"~84" |
100 |
820 |
* Processing range can be customized according to the pipe diameter.
Manufacture

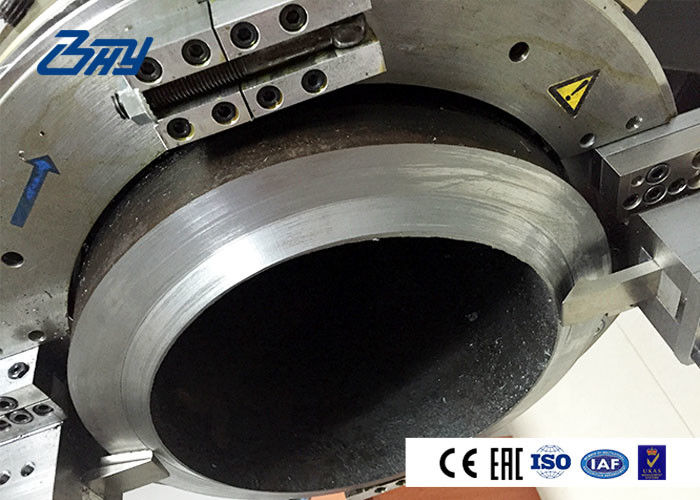

Working On Site
