Product Details:
Payment & Shipping Terms:
|
Model: | SFM0408E | Drive Mode: | Electric |
---|---|---|---|
Gross Weight: | 72kg | Feed: | 0.08mm/r |
Finish: | Anodizing Sand Blasting | Bevel Type: | V,Y,J,compound Shaped |
High Light: | electric pipe cutting machine,electric pipe cutter |

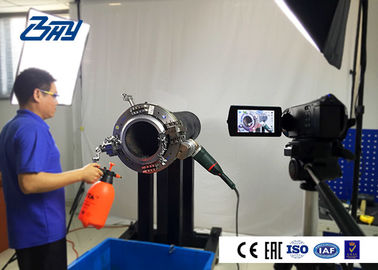

The SFM Series of Pipe Cutting and Beveling Machine manufactured by our company cuts,bevels, counterbores, drills and mills the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2,100 mm and maximum wall thickness of 100 mm. SFM series equipment is one removable, portable, burr-free, highly-precise and vertical cold working pipe cutting and beveling equipment which can be used to process the pipe, install the bridge rail and repair the end surface of flange. It is the best choice for the outdoor construction!
■The drive mode is diversified, including the electric, pneumatic and hydraulic type, suitable for different processing sites and requirements;
■ The adjustable high-strength bearing guarantees the uttermost operation stability of the machine;
■ It is equipped with complete accessories with ability of processing standard bevel, compound bevel and cutting thick-walled pipe.
■ Non-professionals are not allowed to operate the product to avoid unnecessary losses;
■ In case of failure of machine, the maintenance shall be done by the professionals as per the safety standards; maintenance without permission and running under failure condition are not allowed;
■ Make sure the power is shut off during maintenance of equipment.
Feedback: To constantly improve the satisfaction of users with Bohyar’s product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvements.
Name of component | Bohyar | Others | Advantages |

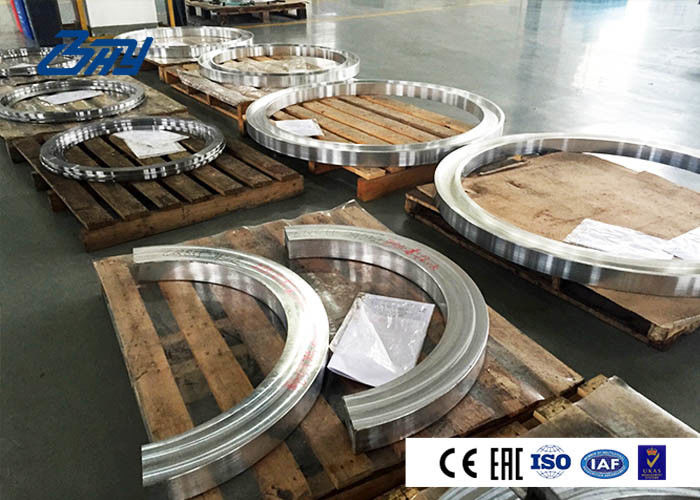

Fixed coil | Imported aviation aluminum | Steel 45# | Light |
Moving coil | Die steel | Steel 45# | Solid and durable |
Tool | Imported tool material | Low price | Good quality |
Tool slide | Die steel | Steel 45# | Solid and durable |
Tool slide structure | Compact and small size | Large | Small size |
Eccentric shaft | Quenching and grinding processing | Lathe processing | High precision |
Gear | Gear-grinding processing | Gear-shaping processing | High precision, stable operation and low noises |
Power supply (electric) | Germany motor | Low price | Strong power, stable operation, low noise and long service life |
Power supply (pneumatic) | Taiwan pneumatic motor | Low price | Strong power, stable operation, low noise and long service life |
Power supply (hydraulic) | White motor | Low price | Strong power, stable operation, low noise and long service life |
