Product Details:
Payment & Shipping Terms:
|
| Model: | SFM0612E | Drive Mode: | Electric |
|---|---|---|---|
| HS: | 8461909000 | Place: | Suzhou City, Jiangsu Province, P.R.China |
| Beveling Tools: | Clip-type, Ordinary Beveling Tools | Business Parters: | CNPC, SINOPEC, CNOOC Etc. |
| High Light: | pipe cutting and beveling machine,electric pipe cutter |
||

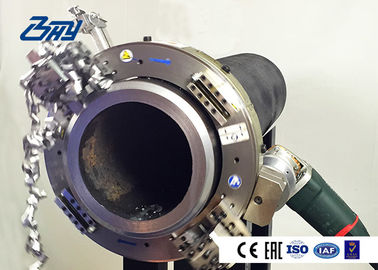

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,
with which cutting and beveling can be conducted at the same time.
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
■ Split frame structure, can be quickly install

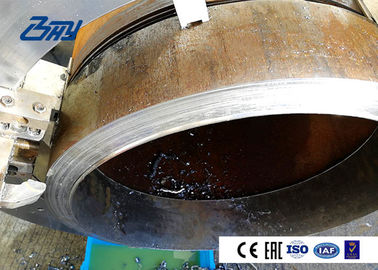

■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
| Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 |
Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 | |
| SFM0612 | 6"~12" | 80 | 45 | |
| SFM0814 | 8"~14" | 100 | 55 | |
| SFM1218 | 12"~18" | 100 | 70 | |
| SFM1420 | 14"~20" | 100 | 76 |
Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 | |
| SFM2026 | 20"~26" | 100 | 130 | |
| SFM2430 | 24"~30" | 100 | 142 | |
| SFM2632 | 26"~32" | 100 | 150 | |
| SFM3036 | 30"~36" | 100 | 159 | |
| SFM3642 | 36"~42" | 100 | 179 | |
| SFM4248 | 42"~48" | 100 | 198 | |
| SFM4860 | 48"~60" | 100 | 642 | |
| SFM6072 | 60"~72" | 100 | 730 | |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
