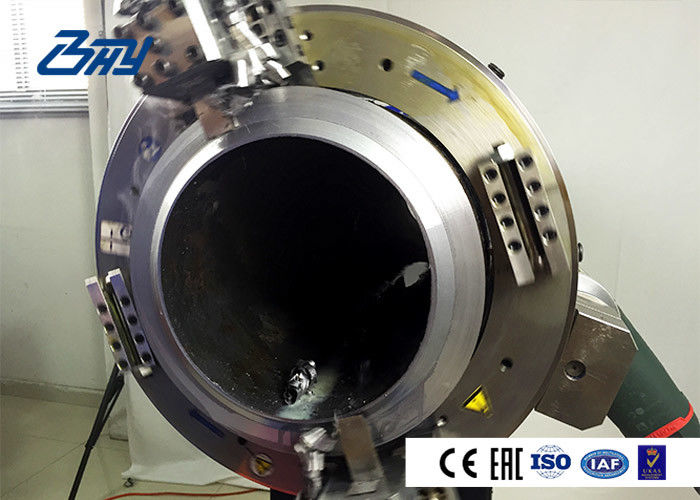

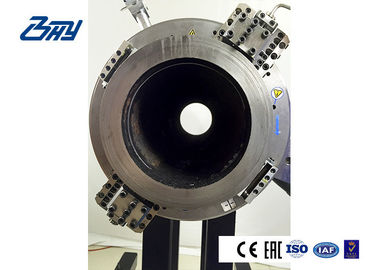

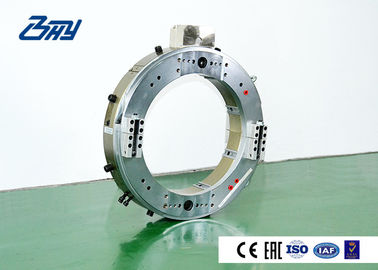

CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System

CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System
CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System

Large Image :  CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0206E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0206E Drive Mode: Electric
Application: Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory Tool Slide: Spring,thick-wall,drilling&beveling Tool Slides
Beveling Tools: Clip-type, Ordinary Beveling Tools Certificates: CU-TR, CE, ISO14001,ISO18001,ISO9001
High Light:

pipe cutting and beveling machine

,

electric pipe cutter

CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System



Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.





Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire



Product Features

■ Split frame structure, can be quickly install

Cold Cutting and Beveling, no heat affected zones

Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

Machining OD of pipe from 2” up to 84”



Specification

Drive Options: Pneumatic, Hydraulic, and Electric

Air requirements: 2-3m³/min

Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Electric requirements: 220V/AC 50/60Hz
Feed mode: Star wheel, automatically
Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy



Beveling type

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

SFM Tools

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site





Models



Model

Processing

range (in)

Max wall

thickness (mm)

Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric

SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic

SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.



Manufacture



Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Portable Lightweight Hydraulic Pipe Cutting Beveling Onsite Machine for Construction

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools







Working On Site



CE Electric Pipe Cutting And Beveling Machine Low Friction Adjustable Bearing System 10
