Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Bohyar | Drive: | Hydraulic |
|---|---|---|---|
| Processing Range: | 6''-72''(153mm-1829mm） | Wall Thickness: | 5mm-20mm |
| Cutter Speed: | Adjustable 0-60RPM | Feed Method: | Reliable, Anti-slip Chain Drive |
| High Light: | pipe cutter and beveler,pipe cold cutting machine |
||
Trav l Cutter

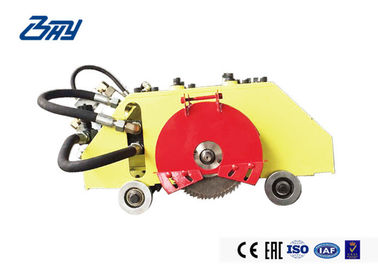

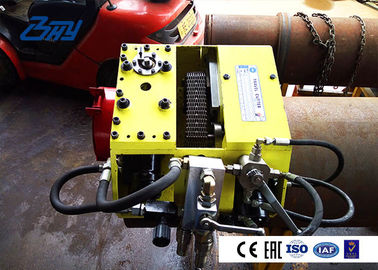

Automatic Climbing Cold Pipe Cutting And Beveling Machine
Trav-L-Cutter, or "Travel Cutter," is a portable pipeline cutting, beveling and milling machine with 6in-72in capacity. This machine features atmospheric anti-corrosion package with stainless steel components and special finishes.
The Model TC0672 utilizes a powerful, sealed closed loop hydraulic drive system, includes anti-corrosion package with stainless steel components and special finishes. It is ideally suited for hostile environments or for use underwater.
Our Climbing pipe cutting and beveling machine is designed for cutting and beveling all common pipe materials. It is widely applied in natural gas, crude oil, long distance transport pipeline, power plant and hostile environments etc.
■ Horizontal and vertical cutting
The Travel Cutter will operate on horizontal or vertical pipe, in the field or in the shop.
■ Safe, Cold Cutting
Bohyar’s Travel Cutter can be used in explosive conditions, on natural gas, crude, product and fuel lines.
■ Fast, Reliable
A standard wall pipe can be cut and beveled with a cutting speed of approximately 2 minutes per 1'' of pipe diameter. Cutting time varies for heavier walls and harder alloys.
■ Corrosion resistance
Use stainless steel screws, special bearings, seals and zinc layer including attachment prevents corrosion due to the long-term job in brine that may arise.
Chain Length
|
Pipe Size |
Type DI/S |
Pipe Dia. |
Add on Length² |
Total Length |
|
6" |
S |
6.625" (168mm) |
0 |
42" (1067mm) |
|
Di |
6.90" (175mm) |
|||
|
8" |
S |
8.625" (219mm) |
5" (127mm) |
47" (1194mm) |
|
Di |
9.05" (230mm) |
|||
|
10" |
S |
10.75" (273mm) |
8" (203mm) |
55" (1397mm) |
|
Di |
11.10" (282mm) |
|||
|
12" |
S |
12.75" (324mm) |
6" (152mm) |
61" (1549mm) |
|
Di |
13.20" (335mm) |
|||
|
14" |
S |
14.00" (356mm) |
2" (51mm) |
63" (1600mm) |
|
Di |
15.30" (389mm) |
|||
|
16" |
S |
16.00" (406mm) |
6" (152mm) |
69" (1752mm) |
|
Di |
17.40" (442mm) |
|||
|
18" |
S |
18.00" (457mm) |
7" (179mm) |
76" (1930mm) |
|
Di |
19.50" (495mm) |
|||
|
20" |
S |
20.00" (508mm) |
2" (51mm) |
78" (1981mm) |
|
Di |
21.60" (549mm) |
7" (179mm) |
83" (2108mm) |
|
|
24" |
S |
24.00" (610mm) |
13" (330sm) |
91" (2312mm) |
|
Di |
25.80" (655mm) |
96" (2438mm) |
||
|
30" |
S |
30.00" (762mm) |
20" (508mm) |
111" (2819mm) |
|
Di |
32.00" (813mm) |
116" (2946mm) |
||
|
36" |
S |
36.00" (915mm) |
17" (432mm) |
128"(3251mm) |
|
Di |
38.30" (973mm) |
133" (3378mm) |
||
|
42" |
S |
42.00" (1067mm) |
19" (482mm) |
147" (3734mm) |
|
Di |
44.50" (1130mm) |
152" (3861mm) |
||
|
48" |
S |
48.00" (1219mm) |
17" (432mm) |
164" (4166mm) |
|
Di |
50.80" (1290mm) |
21" (533mm) |
173" (4394mm) |
|
|
54" |
S |
54.00" (1372mm) |
20" (508mm) |
184" (4674mm) |
|
Di |
57.26" (1454mm) |
194" (4928mm) |
||
|
60" |
S |
60.00" (1524mm) |
18" (458mm) |
202" (5131mm) |
|
Di |
61.61" (1565mm) |
13" (330mm) |
207" (5258mm) |
|
|
72" |
S |
72.00" (1829mm) |
38" (965mm) |
240" (6096mm) |
■ Make sure the work pieces are supported adequately for installation of the equipment. This includes supporting any of the work pieces “fall-off” section when serving the work piece. Ensuring support of the work piece is the responsibility of the operator.
■ Tools on any cutting equipment including drills, milling tools, etc.-may get very hot. Do not touch the tools until you have made sure it is not too hot to handle.
■ Before performing any service on the equipment, disconnect the power source. Follow all procedures required at the worksite.
Feedback: We will highly appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
