Aluminum Portable 30in Pipe Cutting And Beveling Machine

Aluminum Portable 30in Pipe Cutting And Beveling Machine
Aluminum Portable 30in Pipe Cutting And Beveling Machine

Large Image :  Aluminum Portable 30in Pipe Cutting And Beveling Machine

Product Details:
Place of Origin: Suzhou, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM2430
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Name: 30inch Pipe Cutting And Beveling Machine Model: SFM2430
Processing Range: 24"-30"(OD:609.6-762mm) Drive Mode: Electric
Cutters Material: Hard Alloy Power: 2.4KW
Power Supply: 220V/AV, 50/60 Hz Motor Brand: Germany Metabo
Business Parters: CNPC, SINOPEC, CNOOC Etc.
High Light:

30in Pipe Cutting And Beveling Machine

,

30in portable pipe cutting beveling machine

,

CE Pipe Cutting And Beveling Machine

30inch Pipe Cutting and Beveling Machine ,Aluminum Material,Portable

Pipe Cutting and Beveling Machine Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.



SFM Series of Pipe Cutting and Beveling Machine is the pipe processing equipment independently developed by our company based on the market and prospect of pipe service industry. The products are portable, precise, and efficient and in modular design, fully meeting customer demands, so they are the perfect choice for the cutting, beveling and end prefabrication of various pipes.



Pipe Cutting and Beveling Machine Bevel Type

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.



Pipe Cutting and Beveling Machine Product Features

■ It is multifunctional and can be used for pipe reaming, beveling, cutting of thick-walled pipes, etc.

■ The tool slide is in high strength structure, with long service life and high processing precision;

■ Clamping pipe is simple and the expansion blocks in all models have been equipped based on the model of machines, so the clamping can be completed only by making subtle adjustment.

■ It is designed in the principles of light weight, portability and durability;



Name Pipe Cutting and Beveling machine
Model SFM 2430
Processing Range 24"-30"(OD:609.6-762mm)
Drive Mode Electric
Wall thickness ≤80mm
Power 2.4KW
Power supply 220V/AV, 50/60 Hz
Motor brand Germany Metabo
Function Cutting and Beveling, Cold cutting, Portable
Machinable material carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy
Ring component material High strength aviation aluminum
Feed rate 0.08mm per circle
Rotation speed 0 - 2mm/min ( 0 - 25r/min , 0.08mm/r)
Feed mode Star wheel, automatically
Surface treatment Anodization
Cutting and beveling time 47.62s (Wall thickness:20mm)

Pipe Cutting and Beveling Machine Standard Configuration

Machine SFM machine 1PC
Drive Mode Electric/pneumatic/hydraulic Motor 1PC
Components Aluminum alloy/wooden packing case 1PC
Cutter holder 1PC
Cutting blade 1PC
Tools Rubber hammer, Spray bottle, Square, Wrench set 1SET
Documents Operating manual, SFM 1PC
Certificate of conformity, SFM 1PC
U-disk 1PC

Pipe Cutting and Beveling Machine Models



Model

Processing

range (in)

Max wall

thickness (mm)

Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric

SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic

SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.

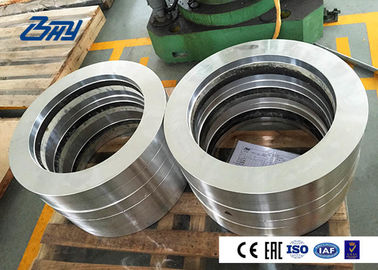

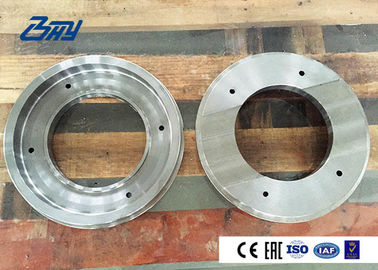

Pipe Cutting and Beveling Machine Manufacture

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Portable Lightweight Hydraulic Pipe Cutting Beveling Onsite Machine for Construction

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools





Pipe Cutting and Beveling Machine Working On Site
