Adjustable Bearing System Hydraulic Pipe Cutting And Beveling Machine No Heat Affected Zones

Split Frame Machine

Product Introduction

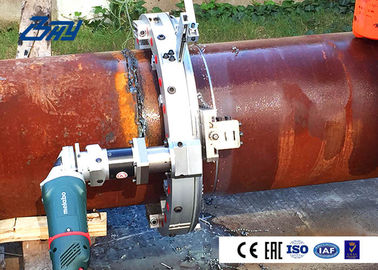

The SFM Series of Pipe Cutting and Beveling Machine manufactured by our company cuts,bevels, counterbores, drills and mills the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2,100 mm and maximum wall thickness of 100 mm. SFM series equipment is one removable, portable, burr-free, highly-precise and vertical cold working pipe cutting and beveling equipment which can be used to process the pipe, install the bridge rail and repair the end surface of flange. It is the best choice for the outdoor construction!

Specifications

Product Features

■ The drive mode is diversified, including the electric, pneumatic and hydraulic type, suitable for different processing sites and requirements;

■ The adjustable high-strength bearing guarantees the uttermost operation stability of the machine;

■ It is equipped with complete accessories with ability of processing standard bevel, compound bevel and cutting thick-walled pipe.

Tool Slides

■ Thick-wall tool slide (conventional): It can be used to SFM models from 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses.

■ Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.

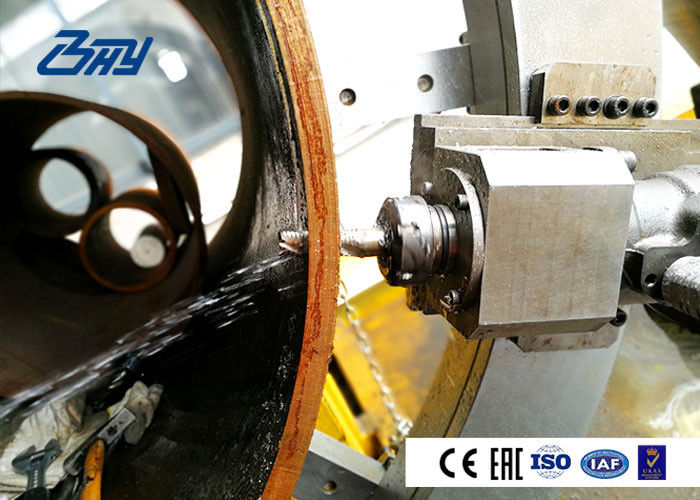

■ Drilling and milling tool slide (only for hydraulic): it can achieve pipe cutting by using the drilling and milling. It is a high-strength tool slide, smooth cutting and simple operation.


FAQ

Q: Do you have any foreign agents?

A: Yes, of course. We pay attention to the foreign market and expand the foreign continuously through our agents in Russia, Korea, Sudan, Pakistan, Malaysia and so on. We are willing to develop new agents in other countries.

Q: Which certificate does your company have?

A: We have many certificates such as high-tech enterprises, high-tech product certification, high-tech product certification, ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates of our machines.
