Product Details:
Payment & Shipping Terms:
|

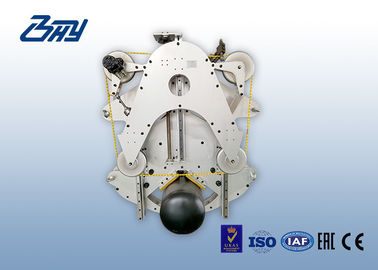

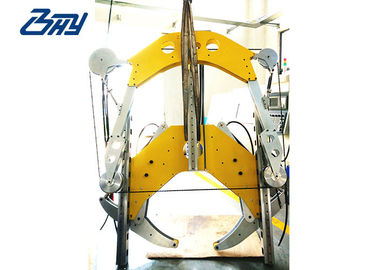

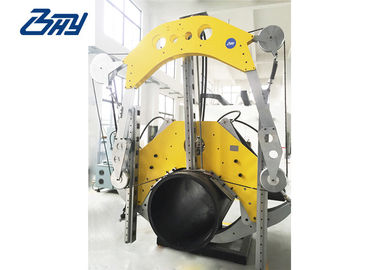

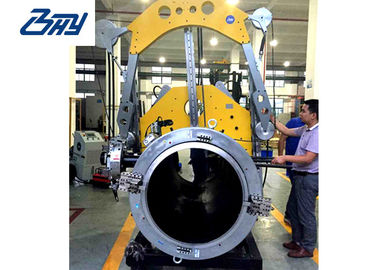

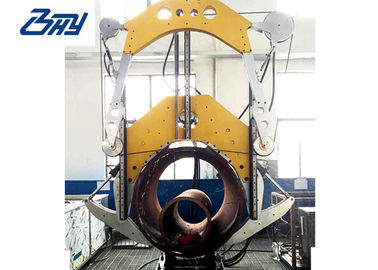

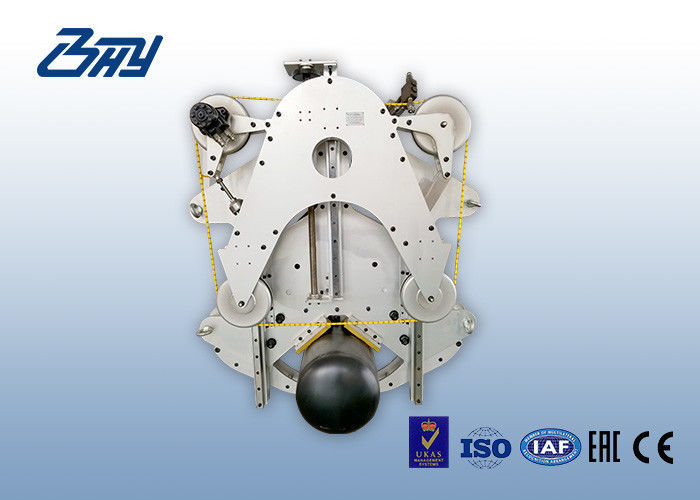

| Model: | DWS0416 | Minimum Size (OD): | 4in (102mm) |
|---|---|---|---|
| Maximum Size (OD): | 16in (406mm) | Drive Options: | Hydraulic Driven |
| Cutting Wire Speed: | Variable, 0-1,500 RPM | Power Requirements: | Power Requirements |
| High Light: | diamond rope saw,portable diamond wire saw |
||
| Model | DWS 0416 | DWS 1230 | DWS 1636 | DWS 3052 | DWS 6084 |
| Maximum Pipe Capacity |
16in (406mm) | 30in (762mm) | 36in (914mm) | 52in (1321mm) | 84in (2134mm) |
| Minimum Pipe Capacity |
4in (100mm) | 12in (305mm) | 16in (406mm) | 30in (762mm) | 60in (1524mm) |
| Height | 55in (1397mm) | 82.5in (2096mm) | 92.5in (2350mm) | 127in (3226mm) | 205in (5207mm) |
| Width | 44in (1118mm) | 63.75in (1619mm) | 69.75in (1772mm) | 87.25in (2216mm) | 118.8in (3017mm) |
| Depth | 28in (711mm) | 30in (762mm) | 32in (813mm) | 43in (1092mm) | 43in (1092mm) |
| Weight | 730lbs (331kg) | 1000lbs (454kg) | 1200lbs (544kg) | 1600lbs (726kg) | - |
| SPECIFICATIONS | |
| System Capacity | Five models cut from 4in to 84in O.D. (DN100-2100) |
| Drive Options | Hydraulic Driven, equipped with hydraulic power station |
| Cutting Wire | Quick change continuous loop diamond wire cutting element |
| Cutting Wire Speed | Variable, 0-1,500 RPM |
| Power Requirements | Hydraulic requirements 20 GPM @ 2500 PSI (76 LPM @ 172 BAR) varies by model and application |
| Feed Method | Automatic self-adjusting feed control with screw drive and manual override |
| Construction | Lightweight aluminum plate construction, constant tension bow feed, three hydraulic drive circuits – cutting, feed, and clamp drive. |
| Finish | Corrosion resistant powder coated aluminum frame plates, black anodized aluminum select components, and stainless steel hardware |
| Clamping Pads | User replaceable crush resistant urethane clamping pads |
| Wire Guides | User replaceable durable urethane inserts |
| FEATURES | |
| Lightweight aluminum plate construction | |
| Five models cut from 4in to 84in O.D. (DN100-2100) | |
| Easily replaceable long life diamond wire cutting element | |
| Hydraulically operated synchronized clamping arms | |
| Self adjusting automatic feed system | |
| Overload clutch for bow damage prevention | |
| Corrosion resistant with anode protection | |
| Mounts vertically or horizontally | |
★ Product Features:
•Lightweight aluminum plate construction.
•Five models cut from 4in to 84in O.D.(DN100-2100).
•Easily replaceable long life diamond wire cutting element.
•Hydraulically operated synchronized clamping arms.
•Self-regulating Tensioning System,Spring and cylinder can maintain a constant tension of the diamond rope, which effectively prevent excessive tension causing damage to the machine, enhance the safety of the operator and greatly extend the rope life.
•Synchronous Clamping to reduce the visual error, and ensure the uniformity of the force.
•Compressible Cutting to reduce the influence of moving or shifting slightly during the operation
•Overload clutch for bow damage prevention.
•Corrosion resistant with anode protection.
•Mounts vertically or horizontally.
★ Product Advantages:
•Lightweight planetary feed drive.
•Large diameter high contact area wire drive wheels.
•Hydraulic wire drive motor w/overhung bearing support.
•Lift interfaces for vertical or horizontal deployment.
•Lightweight aluminum plate construction.
•User replaceable clamp contact pads and wheel inserts.
