42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine

42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine
42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine 42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine 42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine 42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine

Large Image :  42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine

Product Details:
Place of Origin: Suzhou, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM4248H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Name: 42" - 48" Portable Pipe Cutting And Beveling Machine, Hydraulic Power Pipe Bevelling Machine Model: SFM4248H
Processing Range: 42"-48"(1066.8-1219.2mm) Wall Thickness: ≤100mm
Drive Mode: Hydraulic Feed: 0.08mm/r
Hydraulic Demand:: 65L/Min,10MPa (15.8GPM,1500PSI) Finish: Anodizing Sand Blasting
Bevel Type: V,Y,J,compound Shaped
High Light:

portable pipe cutting machine

,

pipe bevel cutter

42" - 48" Portable Pipe Cutting and Beveling Machine, Hydraulic Power Pipe Bevelling Machine

Pipe Cutting and Beveling Machine Product Introduction

SFM Series of Pipe Cutting and Beveling Machine is the pipe processing equipment independently developed by our company based on the market and prospect of pipe service industry. The products are portable, precise, and efficient and in modular design, fully meeting customer demands, so they are the perfect choice for the cutting, beveling and end prefabrication of various pipes.



Pipe Cutting and Beveling Machine Bevel Type

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.



Pipe Cutting and Beveling Machine Product Features

■ It is multifunctional and can be used for pipe reaming, beveling, cutting of thick-walled pipes, etc.

■ The tool slide is in high strength structure, with long service life and high processing precision;

■ Clamping pipe is simple and the expansion blocks in all models have been equipped based on the model of machines, so the clamping can be completed only by making subtle adjustment.

■ It is designed in the principles of light weight, portability and durability;



Pipe Cutting and Beveling Machine Standard Configuration

Machine SFM machine 1PC
Drive Mode Electric/pneumatic/hydraulic Motor 1PC
Components Aluminum alloy/wooden packing case 1PC
Cutter holder 1PC
Cutting blade 1PC
Tools Rubber hammer, Spray bottle, Square, Wrench set 1SET
Documents Operating manual, SFM 1PC
Certificate of conformity, SFM 1PC
U-disk 1PC

Pipe Cutting and Beveling Machine Models



Model

Processing

range (in)

Max wall

thickness (mm)

Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric

SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic

SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.

Pipe Cutting and Beveling Machine Manufacture

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Portable Lightweight Hydraulic Pipe Cutting Beveling Onsite Machine for Construction

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

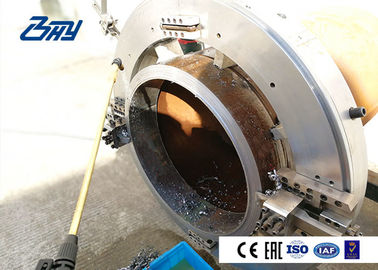

Pipe Cutting and Beveling Machine Working On Site
