Product Details:
Payment & Shipping Terms:
|
Name: | Hydraulic Drive Cold Cutting Machine Pipe Bevelling Tools | Model: | SFM3036H |
---|---|---|---|
Working Range: | OD: 30" - 36"(762-914.4mm) | Drive Mode: | Hydraulic |
Application: | Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory | Feed: | 0.08mm/r |
Hydraulic Demand:: | 65L/Min,10MPa (15.8GPM,1500PSI) | Package: | Aluminum Alloy, Metal Packing Case Or Wooden Box |
Highlight: | pipe cutter and beveler,pipe cold cutting machine |

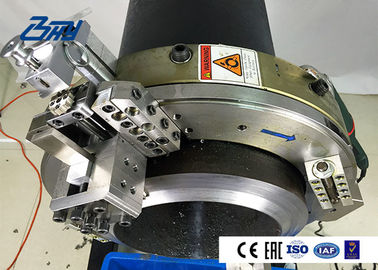

36inch Hydraulic Drive Cold Cutting Machine Pipe Bevelling tools ,Occupying Small Space
Hydraulic Drive Cold Cutting Machine Introduction
1) The light makes the machine is a perfect tool with a small clearance of radial.
2) The simple design reduces the complexity by 40% and improves the compatibility.
3) The cutting machine can cut the pipe with 600MM diameter.
4) Adjustable pillow is combined with reinforced bottom pillow. They improve the dependability and serviceability.
5) Fix the system and button up the pipe easily.
6) High strength, long life and high accuracy.
7) You can adjust the fastening parts by a standard spanner. It can choose to electric drive or air-powered drive.
Hydraulic Drive Cold Cutting Machine Features
■ It is multifunctional and can be used for pipe reaming, beveling, cutting of thick-walled pipes, etc.
■ The tool slide is in high strength structure, with long service life and high processing precision;
■ Clamping pipe is simple and the expansion blocks in all models have been equipped based on the model of machines, so the clamping can be completed only by making subtle adjustment.
■ It is designed in the principles of light weight, portability and durability;
Pipe Cutting And Beveling Machine Basic Info.
Model | SFM3036 |
Drive Mode | Hydraulic |
Hydraulic Demand: | 65L/Min,10MPa (15.8GPM,1500PSI) |
Application Range (O.D.) | 30" - 36"(762-914.4mm) |
Wall Thickness | ≤100mm |
Net Weight | 159kg |
Feed Method | Star wheel system |
Feed | 0.08mm/r |
Rotation Speed: | 0 - 2mm/min |
Hydraulic Drive Cold Cutting Machine Beveling type
Cold Cutting Machine Models
Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) |
Drive mode |
SFM0206 |
2"~ 6" |
30 |
35 |
Pneumatic Hydraulic Electric |
SFM0408 |
4"~ 8" |
40 |
40 |
|
SFM0612 |
6"~12" |
80 |
45 |
|
SFM0814 |
8"~14" |
100 |
55 |
|
SFM1218 |
12"~18" |
100 |
70 |
|
SFM1420 |
14"~20" |
100 |
76 |
Electric Hydraulic |
SFM1824 |
18"~24" |
100 |
123 |
|
SFM2026 |
20"~26" |
100 |
130 |
|
SFM2430 |
24"~30" |
100 |
142 |
|
SFM2632 |
26"~32" |
100 |
150 |
|
SFM3036 |
30"~36" |
100 |
159 |
|
SFM6072 |
60"~72" |
100 |
730 |
|
SFM7284 |
72"~84" |
100 |
820 |
* Processing range can be customized according to the pipe diameter.

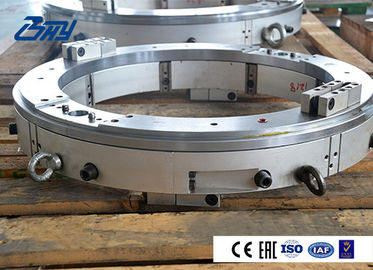

Cold Cutting Machine Manufacture

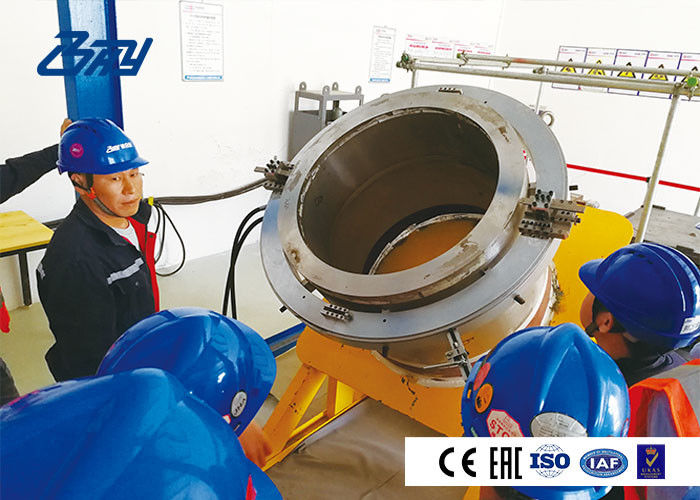

Hydraulic Drive Cold Cutting Machine Working On Site
