| Name: | Portable Hydraulic Cold Cutting Tube Beveling Machine | Model: | SFM3036H Cold Tube Beveling Machine |
|---|---|---|---|
| Processing Range: | 30"-36"(762-914.4mm) | Drive Mode: | Hydraulic |
| Feed: | 0.08mm/r | Hydraulic Demand:: | 65L/Min,10MPa (15.8GPM,1500PSI) |
| Package: | Aluminum Alloy, Metal Packing Case Or Wooden Box | Structure: | Split Frame Structure |
| High Light: | 36in Automatic Pipe Beveling Machine,36in pipe cold cutting machine,762mm Automatic Pipe Beveling Machine |
||
36" Pipe Hydraulic Cold Cutting Beveling Machine ,Split Frame ,Portable ,Processing Various Pipes
Cold Tube Beveling Machine Features:
SFM Series of Pipe Cutting and Beveling Machine is the pipe processing equipment independently developed by our company based on the market and prospect of pipe service industry. The products are portable, precise, and efficient and in modular design, fully meeting customer demands, so they are the perfect choice for the cutting, beveling and end prefabrication of various pipes.
Cold Tube Beveling Machine Industry Application
The SFM Series of Pipe Cutting and Beveling Machines are widely used in long-distance transport pipeline, power plant, nuclear power, petroleum, chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline installation engineering, rush-repair work, etc. Our products play an important role in these fields.
Technical Sheet for SFM 3036
| Name | Pipe Cutting and Beveling machine |
| Model | SFM 3036 |
| Processing Range | 30"-36"(OD:762-914.4mm) |
| Wall thickness | ≤80mm |
| Shipping Weight: | 159KG |
| Dimensions | 1400*1350*600mm |
| Drive Mode | Hydraulic |
| Function | Cutting and Beveling, Cold cutting, Portable |
| Machinable material | Carbon steel, alloy steel, stainless steel |
| Ring component material | High strength aviation aluminum |
| Feed | 0.08mm/r |
| Rotation Speed: | 0 - 2mm/min |
| Hydraulic Demand: | 65L/Min,10MPa (15.8GPM,1500PSI) |
| Application: | Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory |
| Package: | Aluminum alloy,metal packing case or wooden box |
| Surface: | Anodization |
| Bevel Type: | V,Y,J,compound Shaped |
| Mounting Method: | Split OD Mounted |
| HS CODE: | 8461909000 |
| Drive mode | Pneumatic | Air requirements | 2-3m³/min |
| Hydraulic | Hydraulic requirements | 65L/min,10MPa(15.8GPM,1500PSI) | |
| Electric | Electric requirements | 220V/AC | |
| Feed method | Star wheel system | Feed | 0.08mm/r |
| Finish | Anodizing sand blasting | Packaging | Aluminum alloy,metal packing case or wooden box |
| Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 |
Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 | |
| SFM0612 | 6"~12" | 80 | 45 | |
| SFM0814 | 8"~14" | 100 | 55 | |
| SFM1218 | 12"~18" | 100 | 70 | |
| SFM1420 | 14"~20" | 100 | 76 |
Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 | |
| SFM2026 | 20"~26" | 100 | 130 | |
| SFM2430 | 24"~30" | 100 | 142 | |
| SFM2632 | 26"~32" | 100 | 150 | |
| SFM3036 | 30"~36" | 100 | 159 | |
| SFM3642 | 36"~42" | 100 | 179 | |
| SFM4248 | 42"~48" | 100 | 198 | |
| SFM4860 | 48"~60" | 100 | 642 | |
| SFM6072 | 60"~72" | 100 | 730 | |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.

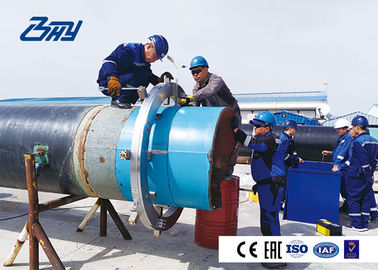

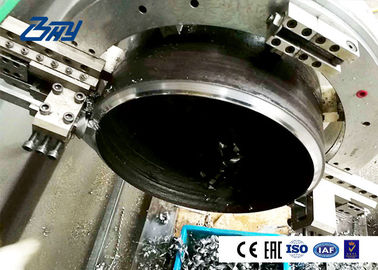

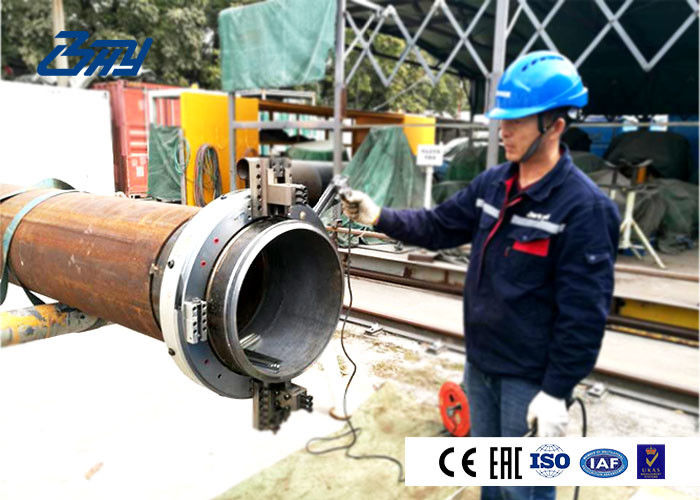

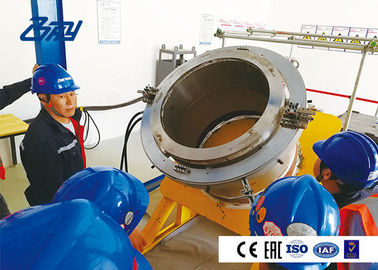

Cold Tube Beveling Machine Working On Site
