Product Details:
Payment & Shipping Terms:
|
Name: | Pneumatic Pipe Cutting And Beveling Machine | Drive Mode: | Pneumatic |
---|---|---|---|
Working Range: | 12inches - 18inches | Gross Weight: | 69kg |
Application: | Industrial Metal Cutting,Carbon Steel,Industrial Instrument,Stainless Steel,metal Tube Deburring Machine | Feed: | 0.08mm/r |
Package: | Aluminum Alloy, Metal Packing Case Or Wooden Box |

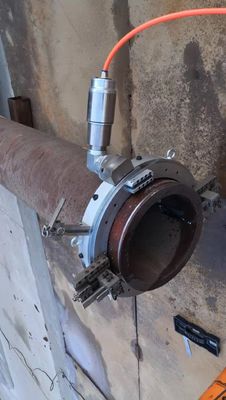

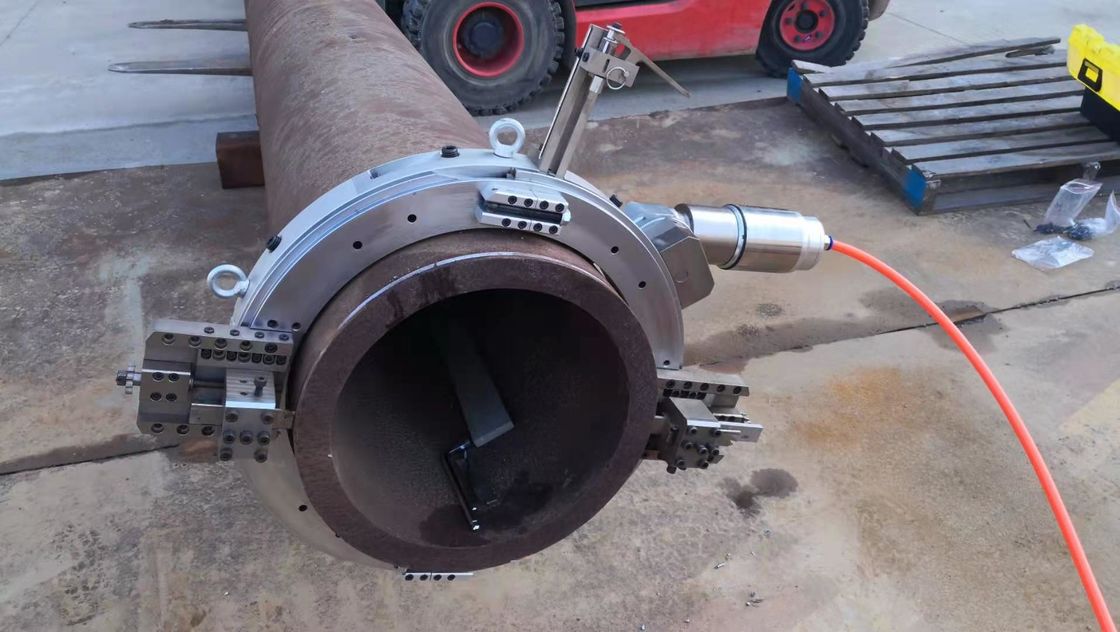

12" - 18" Pneumatic Pipe Cutting And Beveling Machine
Features

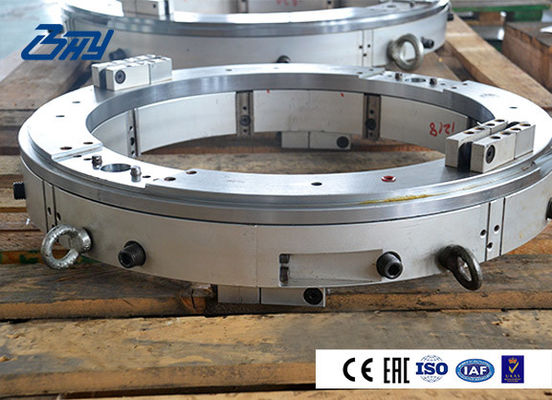

1: the split frame design allows it to separate mount around the od of the in-line pipe for strong stable clamping.
2: This pipe cutting machine is easy to use, one operator can mount and dismount the machine on pipe within minutes
3: This pipe cutting and beveling machine has excellent stability and enhanced gear heat treatment to ensure expanded machine life
4: cold cutting and beveling
5: Suitable for cut all kind of materials, from cast iron, high strength alloy, to stainless steel
6: This portable pipe lathes have several models available, covering OD from 2” to 30” (780mm), wall thickness can reach up to 6”(150mm)
7: Three power sources available for different application: Hydraulic Station, Pneumatic, and Electric
8: Especially useful for large diameter pipes
Pneumatic Pipe Cutting And Beveling Machine Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
Pneumatic Pipe Cutting And Beveling Machine Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
Beveling type
Models Dimension
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model |
A (mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
SFM0206 |
176 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0408 |
228 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0612 |
332 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0814 |
364 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1218 |
468 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1420 |
518 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1824 |
622 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2026 |
674 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2430 |
776 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2632 |
826 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3036 |
928 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3238 |
1006 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3642 |
1082 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM4248 |
1236 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3648 |
1296 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM4860 |
1600 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM6072 |
1905 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM7284 |
2210 |
140 |
220 |
276 |
235 |
253 |
174 |
