Name: | Pipe Cutting Beveling Machine | Mode: | SFM 1824 |
---|---|---|---|
Application Range: | 18" - 24"(457.2-609.6mm) | Drive Mode: | Electric |
Certificates: | CU-TR, CE, ISO14001,ISO18001,ISO9001 | Wall Th.: | ≤80mm |
Feed Rate: | 0.08mm Per Circle | Electric Requirements: | 220V/AV, 50/60 Hz |
Motor Brand: | Germany Metabo | Net Weight: | 123kg |
Gross Weight: | 186KG | ||
High Light: | CU-TR automatic pipe beveling machine,609.6mm pipe cutting beveling machine,609.6mm automatic pipe beveling machine |
Automatic Feed Pipe Cutting And Beveling Machine in Split Frame Structure
Pipe Cutting And Beveling Machine Introduction
Half Automatic Pipe Cutting Beveling Machine Pipe Tools in Split Frame Structure is the pipe processing equipment independently developed by our company based on the market and prospect of pipe service industry. The products are portable, precise, and efficient and in modular design, fully meeting customer demands, so they are the perfect choice for the cutting, beveling and end prefabrication of various pipes.
Pipe Cutting And Beveling Machine Basic Info.
Model |
SFM1824 |
Drive Mode |
Electric |
Electric Requirements |
220V/AV, 50/60 Hz |
Application Range (O.D.) |
18" - 24"(457.2-609.6mm) |
Wall Thickness |
≤80mm |
Net Weight |
123kg |
Feed Method |
Star wheel system |
Feed |
0.08mm/r |
All standard accessories included |
Processing range can be customized according to the pipe diameter.
We have sixteen standard split frame machines from 2'' to 84'' with three drive modes: pneumatic drive mode, hydraulic drive mode and electric drive mode. The processing range of our pneumatic machines is from 2''-18''. In addition, the processing range can be customized according to the pipe diameter. We have strong product customization capabilities to meet different customer needs.
Pipe Cutting And Beveling Machine Tools

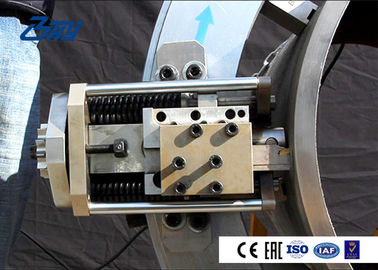

We have two types of cutting tools: clip-type cutting tools and ordinary cutting tools.
And we also have two types of beveling tools: clip-type beveling tools and ordinary beveling tools. As we all know, the tool is a fragile item. So we have also upgraded the tool several times in order to meet the customer needs. The clip-type tools can effectively save costs and extend tool life.
Pipe Cutting And Beveling Machine Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.
We have several bevel type: v-shaped, y-shaped, compound shaped, compound j-shaped as well as j-shaped. Customized tools can be provided for processing bevels of other angles.
Pipe Cutting And Beveling Machine Features
■ Split frame technology, easy to install in the pipeline;
■ Out-mounted, clamping by multipoint jaws;
■ Cold cutting, don’t influence the pipe’s material;
■ Auto feed, cut and bevel the pipe at the same time, cost-effective;
■ Three types of drive motors: electric, pneumatic and hydraulic;
■ Can process material: carbon steel, alloy steel, stainless steel etc.
■ Precise cutting and beveling tools with high efficiency and long service life.
Models Dimension
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model |
A (mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
SFM0206 |
176 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0408 |
228 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0612 |
332 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0814 |
364 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1218 |
468 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1420 |
518 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1824 |
622 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2026 |
674 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2430 |
776 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2632 |
826 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3036 |
928 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3238 |
1006 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3642 |
1082 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM4248 |
1236 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3648 |
1296 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM4860 |
1600 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM6072 |
1905 |
140 |
220 |
276 |
235 |
253 |
174 |
SFM7284 |
2210 |
140 |
220 |
276 |
235 |
253 |
174 |

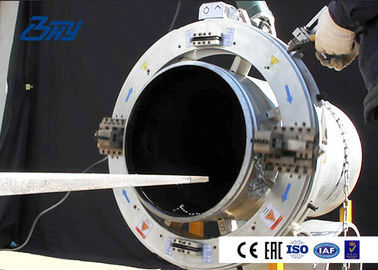

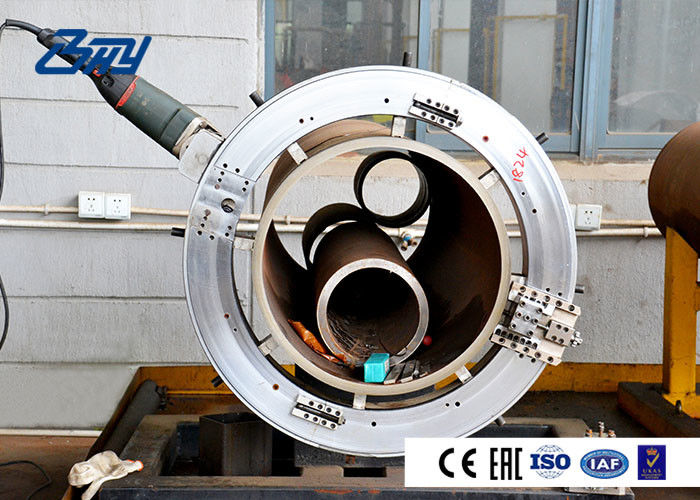

Pipe Cutting And Beveling Machine Working on site
