Product Details:
Payment & Shipping Terms:
|
Brand Name: | Bohyar | Drive Mode: | Hydraulic Drive |
---|---|---|---|
Maximum Pipe Capacity: | 52in (1321mm) | Minimum Pipe Capacity: | 30in (762mm) |
Depth: | 43in (1092mm) | Weight: | 1600lbs (726kg) |
High Light: | diamond rope saw,portable diamond wire saw |
1600 Lbs Diamond Rope Saw Corrosion Resistant With Anode Protection

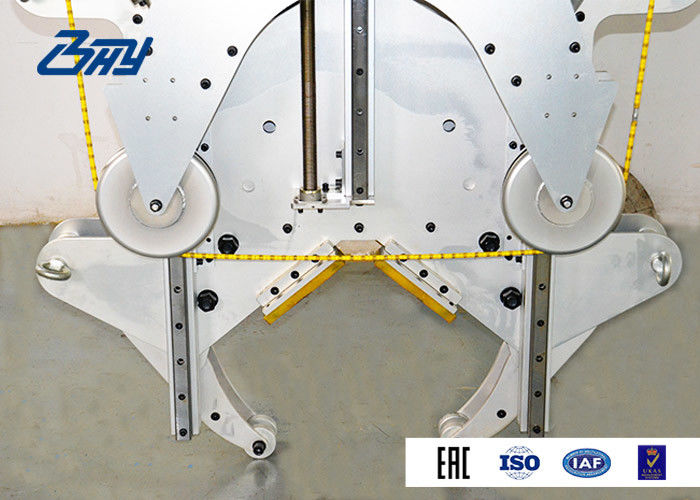

The underwater submarine pipeline diamond wire saw cutting machine features lightweight aluminum plate construction, long life diamond wire cutting element, hydraulically operated synchronized clamping arms, self-adjusting automatic feed system, and an overload clutch for bow damage prevention. All subsea DWS have a unique hydrodynamic design that can dramatically reduce centrifugal forces during operation, which means less power wasted in churning water and more power directed to cutting the work piece.
■ Lightweight aluminum plate construction.
■ Five models cut from 4in to 84in O.D.
■ Easily replaceable long life diamond wire cutting element.
■ Hydraulically operated synchronized clamping arms.
■ Self-adjusting automatic feed system.
■ Overload clutch for bow damage prevention.
■ Corrosion resistant with anode protection.
■ Mounts vertically or horizontally.
Model | DWS 0416 | DWS 1230 | DWS 1636 | DWS3052 | DWS604 |
Maximum Pipe Capacity |
16in (406mm) |
30in (762mm) |
36in (914mm) |
52in (1321mm) |
84in (2134mm) |
Minimum Pipe Capacity |
4in (102mm) |
12in (305mm) |
16in (406mm) |
30in (762mm) |
60in(1524mm) |
Height | 55in (1397mm) |
82.5in (2096mm) |
92.5in (2350mm) |
127in (3226mm) |
205in (5207mm) |
Width | 44in (1118mm) | 63.75in (1619mm) |
69.75in(1772mm) |
87.25in(2216mm) |
118.8in (3017mm) |
Depth | 28in (711mm) |
30in (762mm) |
32in (813mm) |
43in (1092mm) |
43in (1092mm) |
Weight | 730lbs(331Kg) |
1000lbs (454Kg) |
1200lbs (544Kg) |
1600lbs (726Kg) | call |
■ System Function: System Capacity: Five models designed to cut from 4in to 84in O.D. designed to cut submerged pipe, casing and structure of varying materials and thicknesses using a high speed rotating diamond wire loop cutting element
■ Cutting Wire: Quick change continuous loop diamond wire cutting element
■ Cutting Wire Speed: Variable, 0-1,500 RPM
■ Drive Options: Hydraulic only
■ Feed Method: Automatic self-adjusting feed control with screw drive and manual override
■ Feed Rate: Variable based on workpiece material and density
■ Construction: Lightweight aluminum plate construction, constant tension bow feed, three hydraulic drive circuits – cutting, feed, and clamp drive.
■ Finish: Corrosion resistant powder coated aluminum frame plates, black anodized aluminum select components, and stainless steel hardware
■ Clamping Pads: User replaceable crush resistant urethane clamping pads
■ Wire Guides: User replaceable durable urethane inserts
Safety is our priority when diamond wire saw machines are designed, and ergonomics is also taken into consideration to ensure product safety and reliability.
■ Operators should read the safety instructions carefully before operation and properly keep them for reference at any time.
■ Operators should be well aware of the products and fully familiar with the key points of product operations.
■ Before operation, ensure the operators are kept away from any live part such as motors and cables.
■ Operators should be kept away from the rotating cutter head as far as possible for safety when the machine is working.
Diamond Wire Saw Machine
