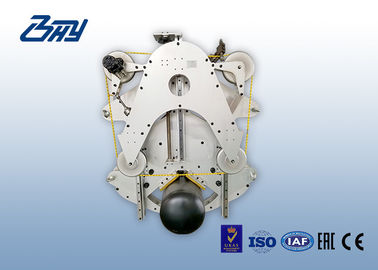

12" 30" Subsea Diamond Wire Saw Subsea Pipe Cutting Machine

Large Image : 12" 30" Subsea Diamond Wire Saw Subsea Pipe Cutting Machine

Product Details:

Place of Origin:	Suzhou, China
Brand Name:	BHY
Certification:	ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number:	DWS1230

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Please Consult
Packaging Details:	Fitted Storage Case
Delivery Time:	180 days
Supply Ability:	10 PC/Year

Contact Now

Detailed Product Description

Name:	Subsea Diamond Wire Saw	Model:	DWS1230
Minimum Size (OD):	12in (305mm)	Maximum Size (OD):	30in (762mm)
Drive Options:	Hydraulic Driven	Cutting Wire Speed:	Variable, 0-1,500 RPM
Power Requirements:	20 GPM @ 2500 PSI (76 LPM @ 172 BAR)
High Light:	DWS Subsea Pipe Cutting Machine , DWS Subsea Diamond Wire Saw , 305mm Subsea Pipe Cutting Machine

Product Description

BHY Reliable On-site Machining Solutions
Website: http://www.pipecuttingbevelingmachine.com/buy-Diamond_Wire_Saw.html

Subsea Diamond Wire Saw

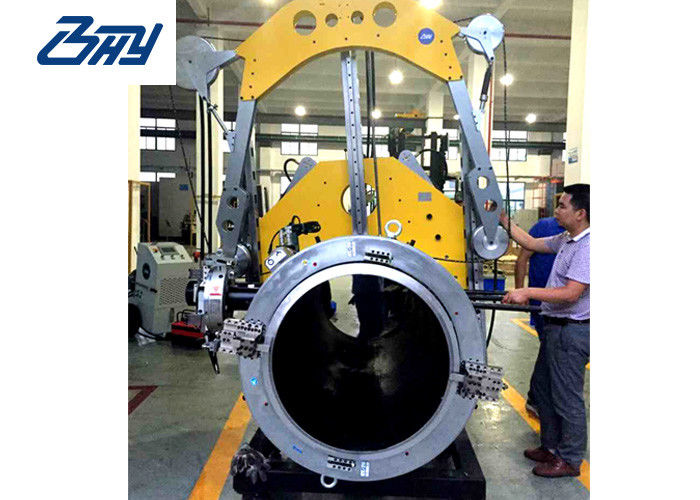

Hydraulic Diamond Wire Saw/Pipe Concrete Cutting Machine - DWS0416

★ Introduction:
Bohyar is the first company in China to achieve R&D of Diamond Wire Saw.The Bohyar Subsea Diamond Wire Saws are designed for underwater cutting of horizontal or vertical pipe, casings and structure, with five models that cut from 4in to 84in O.D.Running on hydraulic power, the wire saw is controlled remotely using the Control Panel or ROV control operable via zero leak hot stabs.
Bohyar Diamond Wire Saws feature a unique hydrodynamic design that dramatically reduces centrifugal forces during operation, which means less power wasted in churning water and more power directed to cutting the workpiece.

★ Technical Parameters

Model	DWS 0416	DWS 1230	DWS 1636	DWS 3052	DWS 6084
Maximum Pipe Capacity	16in (406mm)	30in (762mm)	36in (914mm)	52in (1321mm)	84in (2134mm)
Minimum Pipe Capacity	4in (100mm)	12in (305mm)	16in (406mm)	30in (762mm)	60in (1524mm)
Height	55in (1397mm)	82.5in (2096mm)	92.5in (2350mm)	127in (3226mm)	205in (5207mm)
Width	44in (1118mm)	63.75in (1619mm)	69.75in (1772mm)	87.25in (2216mm)	118.8in (3017mm)
Depth	28in (711mm)	30in (762mm)	32in (813mm)	43in (1092mm)	43in (1092mm)
Weight	730lbs (331kg)	1000lbs (454kg)	1200lbs (544kg)	1600lbs (726kg)	-

SPECIFICATIONS
System Capacity	Five models cut from 4in to 84in O.D. (DN100-2100)
Drive Options	Hydraulic Driven, equipped with hydraulic power station
Cutting Wire	Quick change continuous loop diamond wire cutting element
Cutting Wire Speed	Variable, 0-1,500 RPM
Power Requirements	Hydraulic requirements 20 GPM @ 2500 PSI (76 LPM @ 172 BAR) varies by model and application
Feed Method	Automatic self-adjusting feed control with screw drive and manual override
Construction	Lightweight aluminum plate construction, constant tension bow feed, three hydraulic drive circuits – cutting, feed, and clamp drive.
Finish	Corrosion resistant powder coated aluminum frame plates, black anodized aluminum select components, and stainless steel hardware
Clamping Pads	User replaceable crush resistant urethane clamping pads
Wire Guides	User replaceable durable urethane inserts
FEATURES
Lightweight aluminum plate construction
Five models cut from 4in to 84in O.D. (DN100-2100)
Easily replaceable long life diamond wire cutting element
Hydraulically operated synchronized clamping arms
Self adjusting automatic feed system
Overload clutch for bow damage prevention
Corrosion resistant with anode protection
Mounts vertically or horizontally

★ Product Features:
•Lightweight aluminum plate construction.
•Five models cut from 4in to 84in O.D.(DN100-2100).
•Easily replaceable long life diamond wire cutting element.
•Hydraulically operated synchronized clamping arms.
•Self-regulating Tensioning System,Spring and cylinder can maintain a constant tension of the diamond rope, which effectively prevent excessive tension causing damage to the machine, enhance the safety of the operator and greatly extend the rope life.
•Synchronous Clamping to reduce the visual error, and ensure the uniformity of the force.
•Compressible Cutting to reduce the influence of moving or shifting slightly during the operation
•Overload clutch for bow damage prevention.
•Corrosion resistant with anode protection.
•Mounts vertically or horizontally.

★ Product Advantages:
•Lightweight planetary feed drive.
•Large diameter high contact area wire drive wheels.
•Hydraulic wire drive motor w/overhung bearing support.
•Lift interfaces for vertical or horizontal deployment.
•Lightweight aluminum plate construction.
•User replaceable clamp contact pads and wheel inserts.

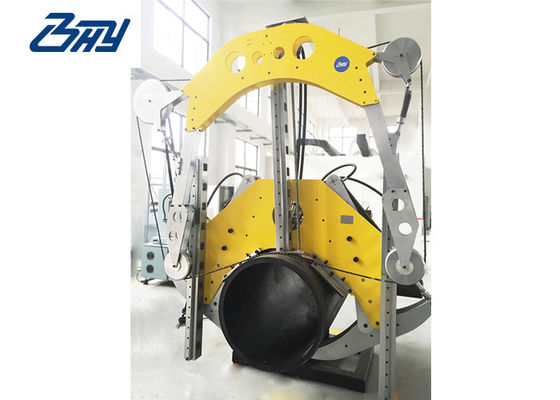

Hydraulic Diamond Wire Saw/Pipe Concrete Cutting Machine - DWS0416
