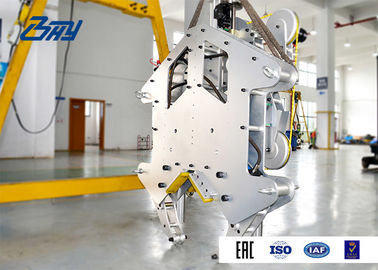

Subsea Cutter Diamond Wire Guillotine Saw HS Controls 730lbs Weight

Subsea Cutter Diamond Wire Guillotine Saw HS Controls 730lbs Weight
Subsea Cutter Diamond Wire Guillotine Saw HS Controls 730lbs Weight Subsea Cutter Diamond Wire Guillotine Saw HS Controls 730lbs Weight

Large Image :  Subsea Cutter Diamond Wire Guillotine Saw HS Controls 730lbs Weight

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: DWS0416
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Aluminium Case
Delivery Time: 300 days
Supply Ability: 20 sets/Year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Hydraulic Drive
Height: 55in (1397mm) Width: 44in (1118mm)
Depth: 28in (711mm) Weight: 730lbs (331kg)
High Light:

diamond rope saw

,

portable diamond wire saw

Subsea Cutter Diamond Wire Guillotine Saw HS Controls 730lbs Weight



Product Introduction

Bohyar engineering material technology company is the first one in China to achieve own research and development ability of producing diamond wire saw. The subsea diamond wire saw is designed for underwater cutting of horizontal or vertical pipes, casings and structure, with five models that cut from 4in to 84in O.D. Running on hydraulic power, the wire saw is controlled remotely with dedicated HS controls, topside control panels or by ROV control.



Industry Application

The diamond wire saw cutting machine is widely applied in deep sea operations, shallow sea operations and platform operations. It is designed for underwater cutting of horizontal or vertical pipes, casings and structure.



Features

■ Lightweight planetary feed drive

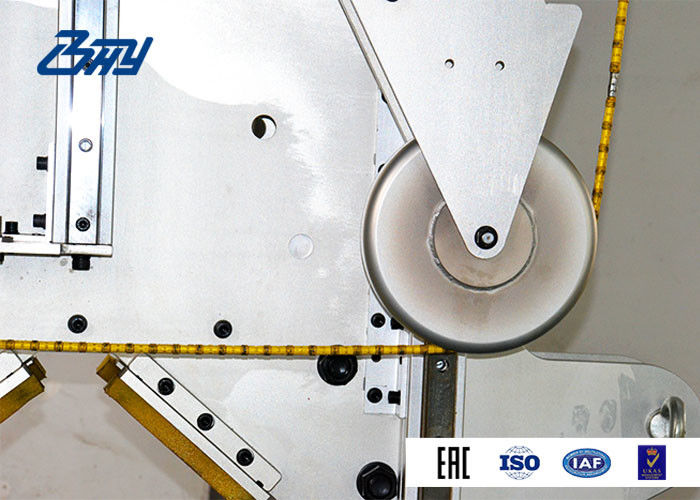

■ Large diameter high contact area wire drive wheels.

■ Hydraulic wire drive motor w/overhung bearing support.

■ Lift interfaces for vertical or horizontal deployment.

■ Lightweight aluminum plate construction.

■ User replaceable clamp contact pads and wheel inserts.

■ Optional TCP Topside Control Panel or by ROV control.



Technical Parameters

Model DWS 0416 DWS 1230 DWS 1636 DWS3052 DWS604

Maximum

Pipe Capacity

16in (406mm)

30in (762mm)

36in (914mm)

52in (1321mm)

84in (2134mm)

Minimum

Pipe Capacity

4in (102mm)

12in (305mm)

16in (406mm)

30in (762mm)

60in(1524mm)

Height 55in (1397mm)

82.5in (2096mm)

92.5in (2350mm)

127in (3226mm)

205in (5207mm)

Width 44in (1118mm) 63.75in (1619mm)

69.75in(1772mm)

87.25in(2216mm)

118.8in (3017mm)

Depth 28in (711mm)

30in (762mm)

32in (813mm)

43in (1092mm)

43in (1092mm)

Weight 730lbs(331Kg)

1000lbs (454Kg)

1200lbs (544Kg)

1600lbs (726Kg) call


Safety Instructions

Safety is our priority when diamond wire saw machines are designed, and ergonomics is also taken into consideration to ensure product safety and reliability.

a)

■ Operators should read the safety instructions carefully before operation and properly keep them for reference at any time.

■ Operators should be well aware of the products and fully familiar with the key points of product operations.

■ Before operation, ensure the operators are kept away from any live part such as motors and cables.

■ Operators should be kept away from the rotating cutter head as far as possible for safety when the machine is working.



Information and Feedback

Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.



Feedback: To constantly improve the satisfaction of users with the product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
