Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System

Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System
Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System

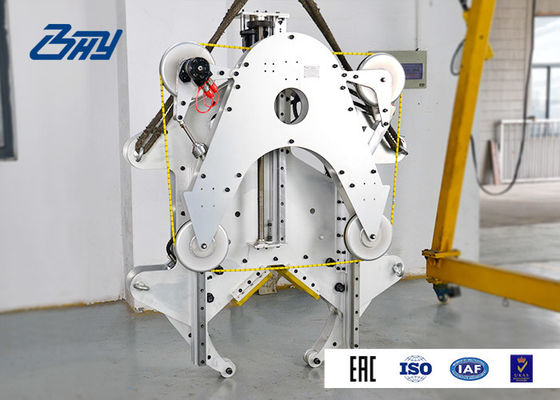

Large Image :  Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System

Product Details:

Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: DWS 0416

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Aluminium Case
Delivery Time: 300 days
Supply Ability: 20 sets/Year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Hydraulic Drive
Maximum Pipe Capacity: 16" Minimum Pipe Capacity: 4"
Height: 55in (1397mm) Width: 44in (1118mm)
High Light:

diamond rope saw

,

portable diamond wire saw

Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System



Product Introduction

Bohyar engineering material technology company is the first one in China to achieve own research and development ability of producing diamond wire saw. The subsea diamond wire saw is designed for underwater cutting of horizontal or vertical pipes, casings and structure, with five models that cut from 4in to 84in O.D. Running on hydraulic power, the wire saw is controlled remotely with dedicated HS controls, topside control panels or by ROV control.



Industry Application

The diamond wire saw cutting machine is widely applied in deep sea operations, shallow sea operations and platform operations. It is designed for underwater cutting of horizontal or vertical pipes, casings and structure.



Features

■ Lightweight aluminum plate construction.

■ Five models cut from 4in to 84in O.D.

■ Easily replaceable long life diamond wire cutting element.

■ Hydraulically operated synchronized clamping arms.

■ Self-adjusting automatic feed system.

■ Overload clutch for bow damage prevention.

■ Corrosion resistant with anode protection.

■ Mounts vertically or horizontally.



Technical Parameters

Model DWS 0416 DWS 1230 DWS 1636 DWS3052 DWS604

Maximum

Pipe Capacity

16in (406mm) 30in (762mm) 36in (914mm) 52in (1321mm) 84in (2134mm)

Minimum

Pipe Capacity

4in (102mm) 12in (305mm) 16in (406mm) 30in (762mm) 60in(1524mm)
Height 55in (1397mm) 82.5in (2096mm) 92.5in (2350mm) 127in (3226mm) 205in (5207mm)
Width 44in (1118mm) 63.75in (1619mm) 69.75in(1772mm) 87.25in(2216mm) 118.8in (3017mm)
Depth 28in (711mm) 30in (762mm) 32in (813mm) 43in (1092mm) 43in (1092mm)
Weight 730lbs(331Kg) 1000lbs (454Kg) 1200lbs (544Kg) 1600lbs (726Kg) call



Main Parts Function

Self-Adjusting Auto-feed

The diamond wire saw features a unique self-adjusting auto-feed system that controls wire bend and automatically matches the feed rate to the cutting rate. With the ability to adjust the feed until the cutting action catches up, DWS delivers more efficient cutting action with enhanced operator safety and greatly extended wire life.



Self-Regulating tensioning system

Spring and cylinder can maintain a constant tension of the diamond rope, which effectively prevent excessive tension causing damage to the machine, enhance the safety of the operator and greatly extend the rope life.



Specifications

System Function: System Capacity: Five models designed to cut from 4in to 84in O.D. designed to cut submerged pipe, casing and structure of varying materials and thicknesses using a high speed rotating diamond wire loop cutting element

Cutting Wire: Quick change continuous loop diamond wire cutting element

Cutting Wire Speed: Variable, 0-1,500 RPM

Drive Options: Hydraulic only

Feed Method: Automatic self-adjusting feed control with screw drive and manual override

Feed Rate: Variable based on workpiece material and density

Construction: Lightweight aluminum plate construction, constant tension bow feed, three hydraulic drive circuits – cutting, feed, and clamp drive.

Finish: Corrosion resistant powder coated aluminum frame plates, black anodized aluminum select components, and stainless steel hardware

Clamping Pads: User replaceable crush resistant urethane clamping pads

Wire Guides: User replaceable durable urethane inserts





Diamond Wire Saw Machine


Horizontal / Vertica Diamond Cutting Wire Saw Self Adjusting Automatic Feed System 0
