High Performance Manual Flange Facing Tool , Flange Facer Long Service Life

High Performance Manual Flange Facing Tool , Flange Facer Long Service Life
High Performance Manual Flange Facing Tool , Flange Facer Long Service Life High Performance Manual Flange Facing Tool , Flange Facer Long Service Life

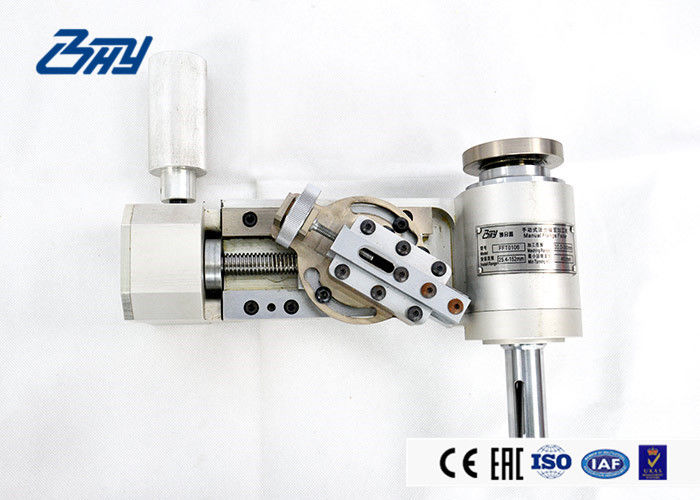

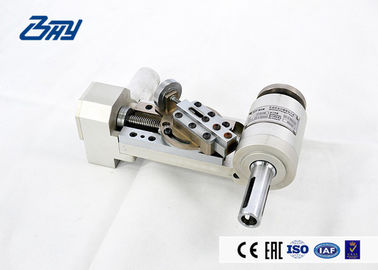

Large Image :  High Performance Manual Flange Facing Tool , Flange Facer Long Service Life

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: FFT106
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Aluminium Case
Delivery Time: 15-35days
Supply Ability: 500 PCS/Year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Manual
Procssing Standard: ASME B 16.5 Min Int Clamp Cap: 1"(25.4mm)
Shipping Dimensions: 495x390x165(mm) Shipping Weight: 7.7kg
High Light:

flange facing equipment

,

flange refacing machine

High Performance Manual Flange Facing Tool , Flange Facer Long Service Life



Product Introduction

The FFT106 manual flange facing tool produced by our company can be used for 1"-6" (25.4mm-152.4mm) valve flange faces. It is the ideal choice of any machining tool inventory. Due to clamping and machining range, it is a very efficient tool for serving or repairing workshop and piping construction companies and vessel manufacturers.



Application

FFT series of manual flange facing tool are the perfect solution to all small diameter facing problems. They are widely used in pipes, valves, flanges and other damage to the end face of the online repair.



Features

■ No external power supply is needed, and the single-person mode can be easily applied for machining.

■ The portable product can be used in a wide range of applications.

■ It can be installed in any direction, widening the applicable scope.

■ The feeding screw can be replaced rapidly, and the machining of waterlines and smooth surfaces can be done at the same time.

■ The rapid-locking center shaft can be aligned accurately to be kept concentric with the flange face.

■ Machining is done in the cold state, and heat or spark will not be produced.

■ Small-diameter flanges can be machined perfectly and easily by one operator at the accuracy and performance similar to lathes.



Technical Parameters

Model FFT106
Min int clamp cap 1in(25.4mm) Max int clamp cap 6in(152mm)
Min facing diam 1in(25.4mm) Max facing diam 14in(350mm)
Minimum swing diameter 460mm Power Manual
Mounting method Installed vertically or horizontally
Processing standard ASME B16.5
Shipping weight 17lbs(7.7kg) Shipping dimensions 495*390*165mm


Installation & Processing

■ Measuring the internal diameter of the pipe

■ Consult the manuals.

■ Take out the expansion block, the connecting block according to the serial number

■ Install the expansion block, the connecting block

■ Rotate the wire rod, adjust the position of the knife

■ Loosen screw and feed

■ Cut the inner ring to ensure the level

■ Tighten the swelling part and feed a certain depth

■ Tighten the screw at the tool post



Operating Steps

■ Rapidly lock the central shaft with a ratchet wrench, and accurately align it to ensure the concentric operation       along with the flange end face.

■  Properly adjust the tool onto the surface to be machined, and set the feeding size.

■ Hold the hand wheel rotating device to machine the flange end face.

■ No maintenance is needed theoretically after operation, but it us recommended to lubricate the product on a        regular basis to maximize the performance and service life.



Operating Instructions

■ Wear protective clothing including safety goggles, hard hat, steel toe shoes, ear plugs (hearing protection),          hair restraints and coveralls.

■ Never wear jewelry when operating rotating machinery.

■ Keep the worksite clean. Use a brush to remove chips from the work piece. Do not use your hands or an air       hose to remove chips.

■ Support work material for total machine weight.

■ Keep hands away from machine when operating! Adjustments should only be made when the rotation has           stopped. Keep hands away from all pinch points
