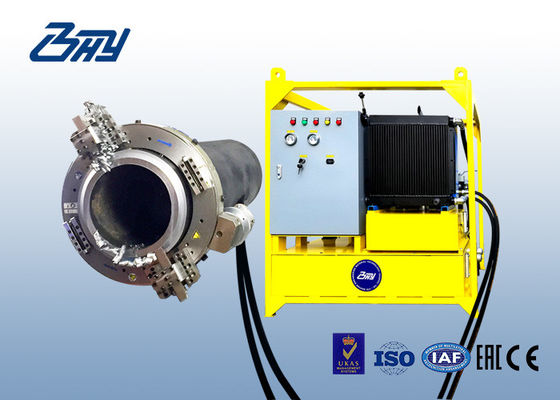

| Name: | Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material | Drive Mode: | Hydraulic |
|---|---|---|---|
| Dimension: | 980*895*580mm | Net Weight: | 123kg |
| Business Parters: | CNPC, SINOPEC, CNOOC Etc. | Material: | High-strength Aeronautical Aluminum |
| Application Range (O.D.): | 18" - 24"(457.2-609.6mm) | Wall Th.: | ≤100mm |
| High Light: | split frame pipe cutting machine,split frame machine |
||
with which cutting and beveling can be conducted at the same time.
The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall,
with processing diameter up to 2100 mm and maximum wall thickness of 100 mm.
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
| Model | A (mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
| SFM0206 | 176 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM0408 | 228 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM0612 | 332 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM0814 | 364 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1218 | 468 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1420 | 518 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1824 | 622 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM2026 | 674 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM2430 | 776 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM2632 | 826 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3036 | 928 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3238 | 1006 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3642 | 1082 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM4248 | 1236 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3648 | 1296 | 140 | 220 | 276 | 235 | 253 | 174 |
| SFM4860 | 1600 | 140 | 220 | 276 | 235 | 253 | 174 |
| SFM6072 | 1905 | 140 | 220 | 276 | 235 | 253 | 174 |
| SFM7284 | 2210 | 140 | 220 | 276 | 235 | 253 | 174 |
| Model | SFM1824H |
| Drive Mode | Hydraulic |
| Hydraulic Requirements | 65L/min,10MPA |
| Application Range (O.D.) | 18" - 24" |
| Wall Thickness | ≤100mm |
| Net Weight | 123kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included | |
| Name of component | Bohyar | Others | Advantages |
| Fixed coil | Imported aviation aluminum | Steel 45# | Light |
| Moving coil | Die steel | Steel 45# | Solid and durable |
| Tool | Imported tool material | Low price | Good quality |
| Tool slide | Die steel | Steel 45# | Solid and durable |
| Tool slide structure | Compact and small size | Large | Small size |
| Eccentric shaft | Quenching and grinding processing | Lathe processing | High precision |
| Gear | Gear-grinding processing | Gear-shaping processing | High precision, stable operation and low noises |
| Power supply (electric) | Germany motor | Low price | Strong power, stable operation, low noise and long service life |
| Power supply (pneumatic) | Taiwan pneumatic motor | Low price | Strong power, stable operation, low noise and long service life |
| Power supply (hydraulic) | White motor | Low price | Strong power, stable operation, low noise and long service life |
