Portable oil gas pipeline cutting beveling Machine, pipe cutting and beveling Machine

Portable Pipe Cutting Machine, Beveling Machine, oil gas pipeline beveling machine, Split Frame Structure

Portable Pipe  Cutting & Beveling

The series machine is ideal for all types of pipe cutting & beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

Application

■ Oil & Natural gas;

■ Refinery;

■ Shipbuilding & Oceaneering;

■ Power plant;

■ Water treatment;

■ Boiler plant.

Features

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

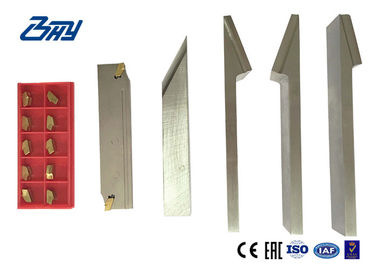

Beveling type

Manufacture

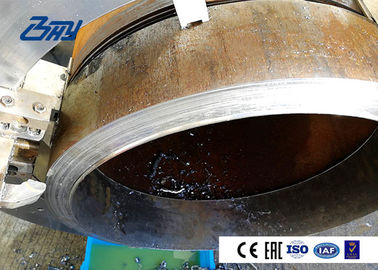

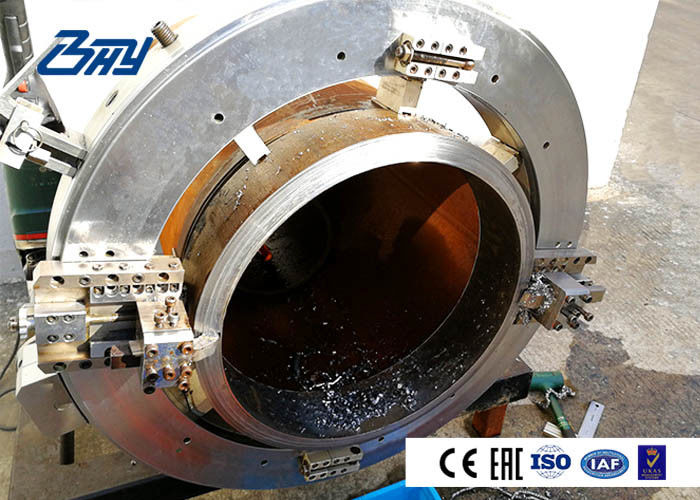

Working On Site
