OD Mounted Portable Pipe Cutting Machine Various Bevel Type Hydraulic Drive

OD Mounted High Efficiency Portable Pipe Cutting Machine Various Bevel Type Hydraulic Drive

Portable Pipe Cutting Machine  Details

1) chuck screw:The screws are distributed all around of annulus. Adjust the distance one by one until the pipe is locked.

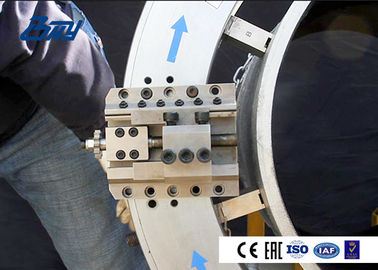

2) blade carrier of groover:There are two blade carriers. One is used for equipping groove blade, another is used for equipping cut-off blade.

3) tension block:There are four kinds of block and any kind has four pieces. You can choose suitable block according to the diameter. These blocks have the ranges of diameter, which are shown on surface of the block.

4) cut-off blade

5) planet reducer casing parts

6) pneumatic / air power motor

7) hanging ring

8) feeder lever:The machine stops feeding when the lever is put outward and feeding when the lever is on the low order.

Portable Pipe Cutting Machine  Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Portable Pipe Cutting Machine Features

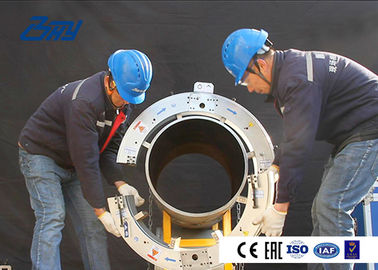

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Portable Pipe Cutting Machine  Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

SFM Tools

Models Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Manufacture

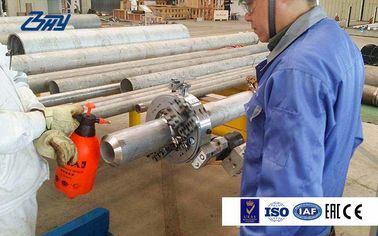

Working on site

■ Project: chemical plant repaire

■ Pipe material: 5CrMoR+00Cr19Ni10

■ Pipe O.D.: 1219mm, 350mm

■ Pipe thickness: 59mm, 30mm
