| Name: | No Spark Cold Cutting Hydraulic Pipe Cutting Beveling Tools For Process Engineering | Drive Mode: | Hydraulic |
|---|---|---|---|
| Dimension: | 910*810*330mm | Processing Range: | 4"-8" |
| Wall Th.: | ≤40mm | Net Weight: | 40kg |
| Hydraulic Requirements: | 65L/min,10Mpa | More: | All Standard Accessories Included |
| High Light: | split frame pipe cutting machine,cold cutting pipe equipment |
||

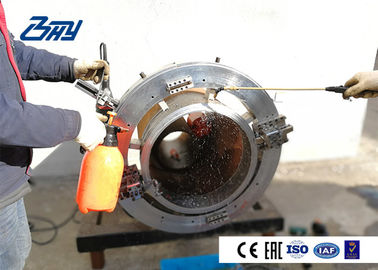

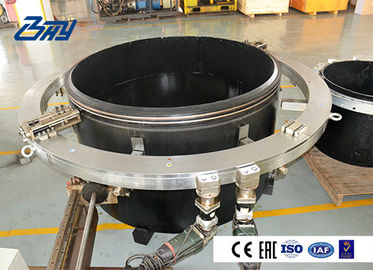

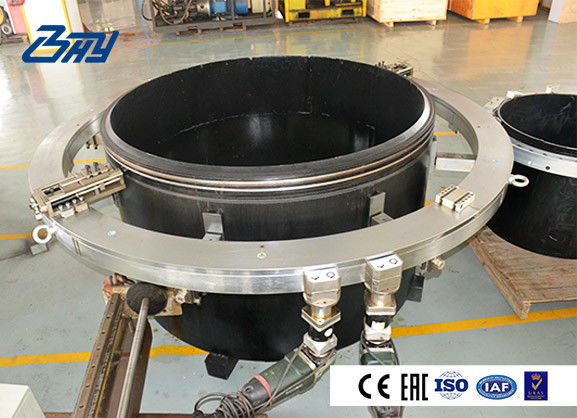

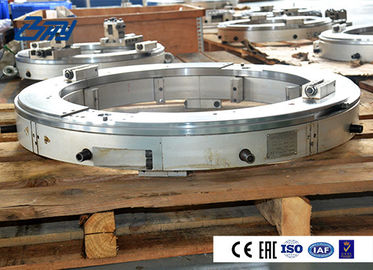

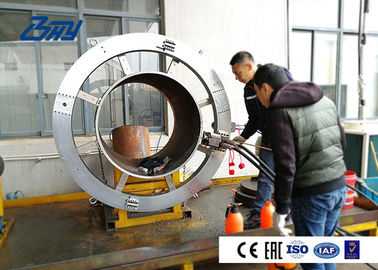

The Hydraulic series of clamshells are highly portable split frame lathes ideally suited for machining applications within new construction,decommissioning, component replacement, fabrication and refurbishment industries.The machines are engineered to cut, bevel, counterbore, single point and flange face on pipe and tubing ranging from 2 inch to 84 inchon all types of materials and wall thicknesses.
Specifications
| Model | SFM0408H |
| Drive Mode | Hydraulic |
| Hydraulic Requirements | 65L/min,10MPA |
| Application Range (O.D.) | 4" - 8" |
| Wall Thickness | ≤40mm |
| Net Weight | 40kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included | |
Application Industries
■ Energy Field
Oil Refinery
Offshore Engineering
Power Plant
■ Process Engineering
Electronic Equipment
Medicine
Biotechnology
Food and Beverage Industry
■ Construction and Construction Equipment
Water and Gas
Water and Treatment
Heater
| Site location | Henan, China |
| Industry | Power Station |
| Pipe O.D | 56" (1414mm) |
| Wall thickness | 110mm |
| Bevel type | Double D |
| Material | 15Cr,P91 |
| Weld width | 80mm |
| Machine | SFM4860 |
| Other information | Cut and bevel the weld, but not cut off; Narrow working space. |
| Results | Finished the work successfully and got the commendatory letter from our client. |
