|Brand Name:||Bohyar||Drive Mode:||Pneumatic|
|Item No.:||BPP4P||Rotating Speed:||34rpm|
|Processing Range:||45-105mm||Beveling Angle:||Under Customer Requirements|

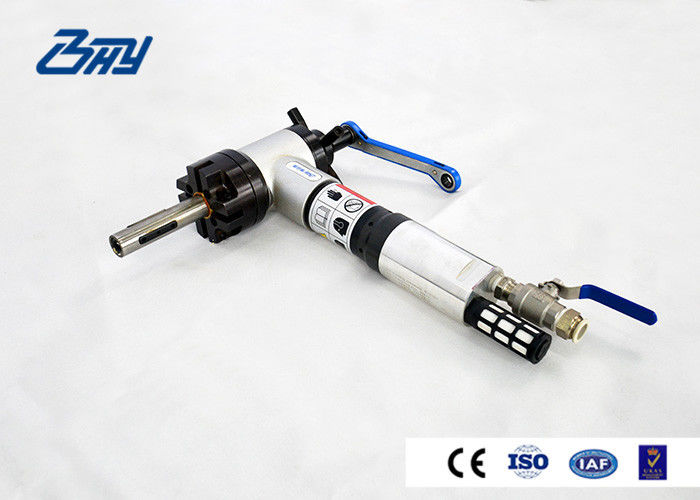

pneumatic pipe beveler,
pneumatic pipe bevelling machine
Inner mounted pipe beveling machines can be tightened to the internal wall of the pipe end, drive the cutter head to rotate through multi-stage planetary reducer and then bevel small-diameter pipes. The applicable inside diameter of pipes for our pipe beveling machine is up to 240 mm (if the pipe to be beveled is larger than this scope, please choose our split frame machines).
Our ID mounted pipe beveling machines are applied in pipeline installation engineering, rush-repair work, heat exchangers, power plant, nuclear power, petroleum, chemical engineering, natural gas, pharmacy, pressure vessels etc.
■ Made of lightweight and high-strength aeronautical aluminum material to ensure portability.
■ The machines are small and light since their main body is made of aviation aluminum and the sizes of all parts are optimized. The well designed expansion mechanism can realize quick and precise positioning, moreover, the machines are solid enough, with sufficient rigidity for the processing. A variety of available cutters enable the machines to process pipes of different materials and bevel ends with various angles and plain ends. Besides, the unique structure and its self-lubrication function endow the machines with long service life.
■ Position the machine in the center of the tube and install the appropriate tool to complete the preparation.
|Flain tool||1||Flain end face(0° )|
|Bevel tool||1||Chamfer(30° )|
|Bevel tool||1||Chamfer(37. 5° )|
|Bevel tool||1||Chamfer(15° )|
|Bevel tool||1||Chamfer(37° )|
The tools attached to the products upon delivery are all made of high-speed steel and applicable to process all types of carbon steel. Their types are the five tools in the above diagram.
Safety is our priority when pipe beveling machines are designed, and ergonomics is also taken into consideration to ensure product safety and reliability.
■ Before operation, please carefully check for loose connections, blocked rotating parts, or any damage and other factors that may affect the operation or lead to hidden dangers.
■ The applicable scope of the machine should be strictly followed for pipe processing.
■ Do not touch electric switches and buttons with wet hands to avoid electric shock.
■ Before operation, ensure the operators are kept away from any live part such as motors and cables.
■ The machines should not be operated outdoors when it rains.
■ Before disassembly or replacement of cutting tools, please ensure the machines are cooled down to the safety temperature to prevent from burning.
■ It is strictly forbidden to transform the machines or replace accessories with those not produced by the original manufacturer without approval.
Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.
Feedback: To constantly improve the satisfaction of users with the product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
