Product Details:
Payment & Shipping Terms:
|
Model: | SFM0814P | Drive Mode: | Pneumatic |
---|---|---|---|
Gross Weight: | 85kg | Feed Method: | Star Wheel System |
Tool Slide: | Spring,thick-wall,drilling&beveling Tool Slides | Place: | Suzhou City, Jiangsu Province, P.R.China |
High Light: | pneumatic cold pipe cutter,pneumatic cold cutting machine |

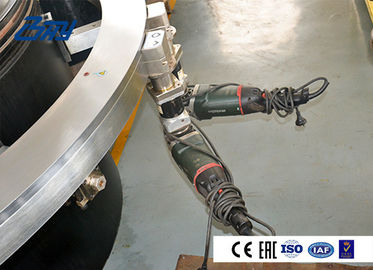

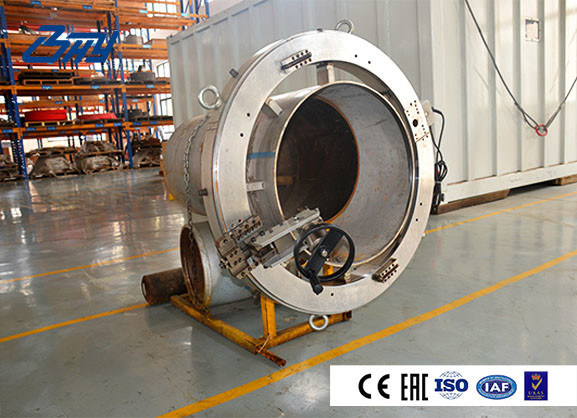

The SFM Series of Pipe Cutting and Beveling Machine manufactured by our company cuts,bevels, counterbores, drills and mills the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2,100 mm and maximum wall thickness of 100 mm. SFM series equipment is one removable, portable, burr-free, highly-precise and vertical cold working pipe cutting and beveling equipment which can be used to process the pipe, install the bridge rail and repair the end surface of flange. It is the best choice for the outdoor construction!
Split frame machines are widely used in the following areas:
■ Oil & Natural gas;
■ Long-distance pipeline;
■ Petrochemistry;
■ Refinery;
■ Shipbuilding & Oceaneering;
■ Power plant;
■ Water treatment;
■ Boiler plant.
We have sixteen standard split frame machines from 2'' to 84'' with three drive modes: pneumatic drive mode, hydraulic drive mode and electric drive mode. The processing range of our pneumatic machines is from 2''-18''. In addition, the processing range can be customized according to the pipe diameter. We have strong product customization capabilities to meet different customer needs.
■ The drive mode is diversified, including the electric, pneumatic and hydraulic type, suitable for different processing sites and requirements;
■ The adjustable high-strength bearing guarantees the uttermost operation stability of the machine;
■ It is equipped with complete accessories with ability of processing standard bevel, compound bevel and cutting thick-walled pipe.
