Product Details:
Payment & Shipping Terms:
|
| Model: | SFM2836H Hydraulic Pipe Cutting And Beveling Machine | Drive Mode: | Hydraulic |
|---|---|---|---|
| Bevel Type: | V,Y,J,compound Shaped | Brand: | Bohyar |
| Business Parters: | CNPC, SINOPEC, CNOOC Etc. | Material: | High-strength Aeronautical Aluminum |
| High Light: | pipe bevel cutter,bevel cutting machine for pipes |
||
28in - 36in pipe High Efficiency Hydraulic Pipe Cutting And Beveling Machine Long Service Life
Hydraulic Pipe Cutting And Beveling Machine Features:
The split frame clamshells use extremely low eight aluminum boy, easily setup in both on-site and workshop
This pipe cutting machine is easy to use, one operator can mount and dismount the machine on pipe within minutes
This pipe cutting and beveling machine has excellent stability and enhanced gear heat treatment to ensure expanded machine life
Heavy Duty, cutting and beveling simultaneously
Suitable for cut all kind of materials, from cast iron, high strength alloy, to stainless steel
Base plate can be easily installed and uninstalled, for workshop and field application
This portable pipe lathes have several models available, covering OD from 65mm to 1500mm, wall thickness can reach up to 6”(150mm)
Hydraulic Pipe Cutting And Beveling Machine Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Hydraulic Pipe Cutting And Beveling Machine Features
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
Hydraulic Pipe Cutting And Beveling Machine Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy
Beveling type
SFM Tools
Models
|
Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) |
Drive mode |
|
SFM0206 |
2"~ 6" |
30 |
35 |
Pneumatic Hydraulic Electric |
|
SFM0408 |
4"~ 8" |
40 |
40 |
|
|
SFM0612 |
6"~12" |
80 |
45 |
|
|
SFM0814 |
8"~14" |
100 |
55 |
|
|
SFM1218 |
12"~18" |
100 |
70 |
|
|
SFM1420 |
14"~20" |
100 |
76 |
Electric Hydraulic |
|
SFM1824 |
18"~24" |
100 |
123 |
|
|
SFM2026 |
20"~26" |
100 |
130 |
|
|
SFM2430 |
24"~30" |
100 |
142 |
|
|
SFM2632 |
26"~32" |
100 |
150 |
|
|
SFM3036 |
30"~36" |
100 |
159 |
|
|
SFM3642 |
36"~42" |
100 |
179 |
|
|
SFM4248 |
42"~48" |
100 |
198 |
|
|
SFM4860 |
48"~60" |
100 |
642 |
|
|
SFM6072 |
60"~72" |
100 |
730 |
|
|
SFM7284 |
72"~84" |
100 |
820 |
* Processing range can be customized according to the pipe diameter.

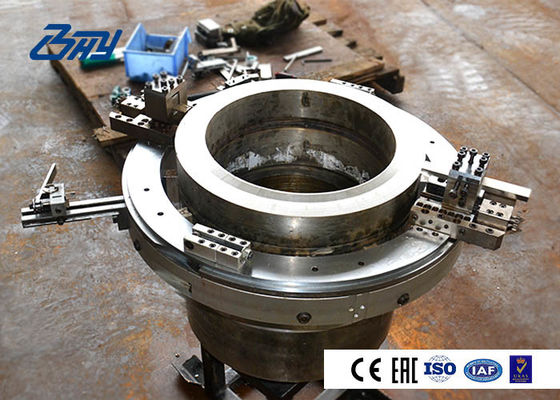

Manufacture

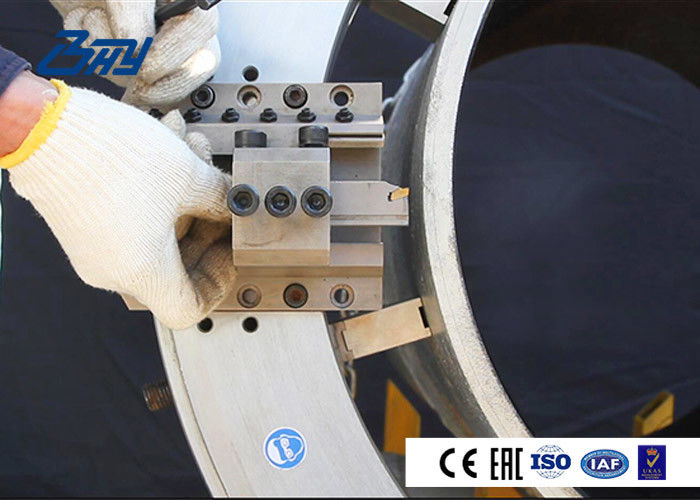

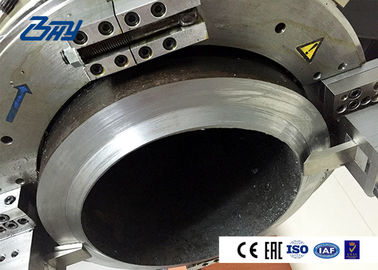

Working On Site
