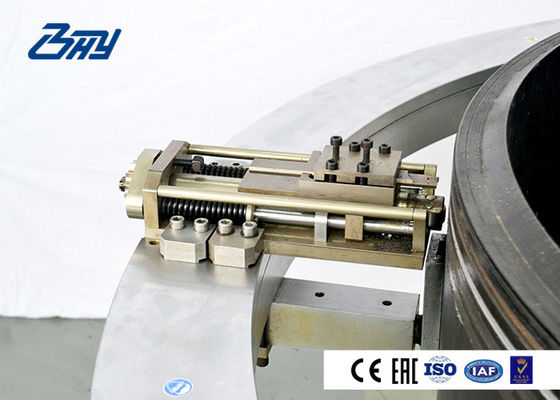

Electric Cold Cutting Pipe Cutting And Beveling Machine, Lightweight, 0.08 mm/r Feed

Electric Cold Pipe Cutting And Beveling Machine, Lightweight, 0.08 mm/r Feed

Cold Pipe Cutting And Beveling Machine Introduction

♦ The pipe cutting beveling machine is powerful and versatile, capable of cutting, beveling and flat flange processing.

♦ There is a wide range of choices for the wall thickness of the pipe. The main features are as follows: The light and simple design makes the cutting beveling machine an ideal tool for extremely small radial clearance. The design is simple, reducing the complexity of the parts by 40%, greatly improving the interchangeability of the parts.

♦ The fixing system can easily and automatically hold the tube. High-strength knife holder slides for long life and high precision.

♦ The fastening components are simple to request and can be adjusted with only one wrench. Electric and pneumatic drives are available.

Application:

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Features:

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification:

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Beveling type

Manufacture:

Working On Site:
