Product Details:
Payment & Shipping Terms:
|
Name: | Portable Pipe Cold Cutting And Beveling Machine | Model: | SFM 0206 |
---|---|---|---|
Working Range: | 2" - 6"(60.3-168.3mm) | Drive Mode: | Electric |
Net Weight: | 35KG | Feed Method: | Star Wheel System |
Business Parters: | CNPC, SINOPEC, CNOOC Etc. | Material: | High-strength Aeronautical Aluminum |
High Light: | cold pipe cutting and bevelling machine,pipe cold cutting machine |

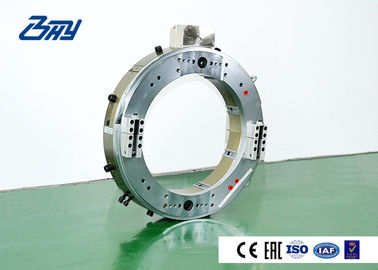

6inch Cold Cutting Pipe Cutting Beveling Machine High Strength ,Portabal

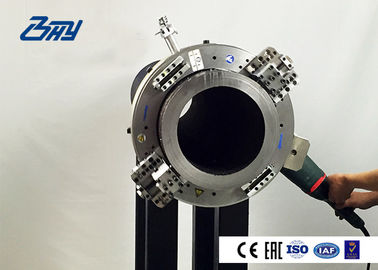

Cold Pipe Cutting Beveling Machine Features
Pipe Cutting And Beveling Machine Basic Info.
Model | SFM0206 |
Drive Mode | Electric |
Electric Requirements | 220V/AV, 50/60 Hz |
Application Range (O.D.) | 2" - 6"(60.3-168.3mm) |
Wall Thickness | ≤35mm |
Net Weight | 35kg |
Feed Method | Star wheel system |
Feed | 0.08mm/r |
Cutting and beveling time | 7.72min(Wall thickness:10mm) |
Cold Pipe Cutting Beveling Machine Dimension
The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors |
|||||||
Model |
A(mm) |
B(mm) |
C(mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
SFM0206 |
176 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0408 |
228 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0612 |
332 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM0814 |
364 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1016 |
416 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1218 |
468 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1420 |
518 |
70 |
122 |
176 |
225 |
253 |
164 |
SFM1824 |
622 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2026 |
674 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2430 |
776 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM2632 |
826 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3036 |
928 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3238 |
1006 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3642 |
1082 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM4248 |
1236 |
102 |
98 |
176 |
235 |
253 |
174 |
SFM3648 |
1296 |
140 |
220 |
276 |
235 |
253 |
174 |
Cold Pipe Cutting Beveling Machine Manufacture

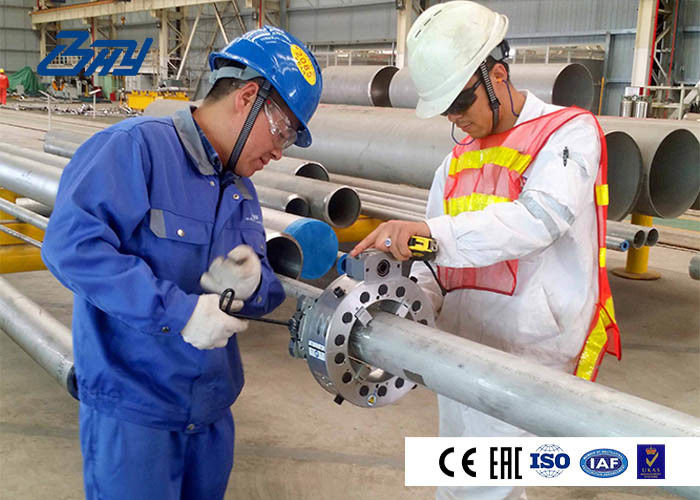

Cold Pipe Cutting Beveling Machine Working On Site
