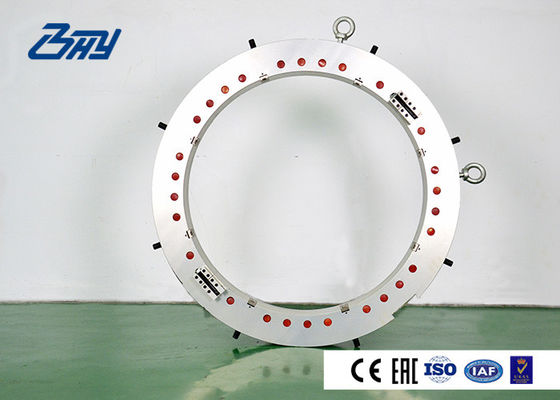

6in - 12in Pipe Cutting Beveling Machine

6"-12" Pipe Cutting Beveling Machine

Electric Pipe Cutting And Beveling Machine Introduction

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4" to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

Electric Pipe Cutting And Beveling Machine Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

Electric Pipe Cutting And Beveling Machine Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Beveling type

Models Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
