Name: | Pneumatic Pipe Cutting And Beveling Machine | Drive Mode: | Pneumatic |
---|---|---|---|
Dimension: | 1000*990*305mm | Net Weight: | 45kg |
Certificates: | CE, ISO14001,ISO18001,ISO9001 | Application Range (O.D.): | 12" |
Wall Th.: | ≤80mm | Shipping Weight: | 75kg |
Highlight: | 12" pneumatic cold pipe cutter,3m³/min pneumatic cold cutting machine |

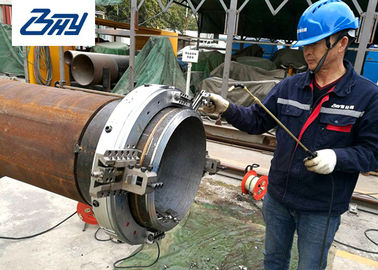

12" Pneumatic Pipe Cutting And Beveling Machine
MAIN CHARACTERISTIC
Explosion Proof
Stable Performance
Simple structure makes easy to maintenance
Occasionally overload won’t burn
Industry Application
■ Energy Field
Oil Refinery
Offshore Engineering
Power Plant
■ Construction and Construction Equipment
Water and Gas
Water and Treatment
Heater
Specifications
Adopting the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC.
Model |
SFM0612P |
Drive Mode |
Pneumatic |
Air Requirements |
2-3m³/min |
Application Range (O.D.) |
6" - 12" (168.3-323.9mm) |
Wall Thickness |
≤80mm |
Net Weight |
45kg |
Feed Method |
Star wheel system |
Feed |
0.08mm/r |
All standard accessories included |
Beveling type
Models
Model |
Processing range (in) |
Max wall thickness (mm) |
Weight(kg) |
Drive mode |
SFM0206 |
2"~ 6" |
30 |
35 |
Pneumatic Hydraulic Electric |
SFM0408 |
4"~ 8" |
40 |
40 |
|
SFM0612 |
6"~12" |
80 |
45 |
|
SFM0814 |
8"~14" |
100 |
55 |
|
SFM1218 |
12"~18" |
100 |
70 |
* Processing range can be customized according to the pipe diameter.
