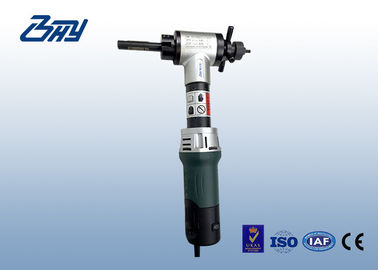

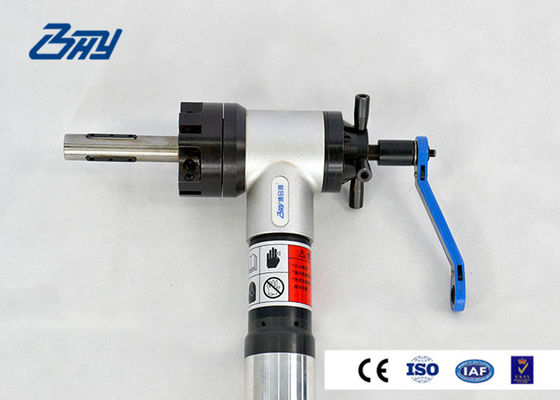

ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable

ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable
ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable

Large Image :  ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable

Product Details:

Place of Origin: Jiangsu China
Brand Name: BHY
Certification: CE, ISO 9001:2008, ISO14001:2004;OHSAS 18001:2007
Model Number: BPP3PE

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15-30 days
Supply Ability: 3000sets/Year
Detailed Product Description
Name: Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool Portable Drive Mode: Electric
Item No.: BPP3PE Processing Range: 36-90mm
Wall Thickness: ≤15mm Rotating Speed: 3-50rpm
Beveling Angle: Under Customer Requirements Rated Power: 1.43kw
Electric Requirement: 220-230V 1PH 50/60HZ More: All Standard Accessories Included
High Light:

electric pipe cutting machine

,

electric pipe beveler

ID mounted Electric Tube Beveling Pipe End Beveling Machine And Pipe Facing Tool



Product Introduction

The portable pipe beveling machines for mechanical pipe edge preparation and orbital welding makes the job easy to be done on-site or in the workshop.





Features

  • Cold cutting, without influence the material of the pipe
  • ID mounted, adopt T structure
  • Varity of beveling shape: U, Single-V, double-V,J beveling
  • It can also be used for repairing inner wall and deep hole processing.
  • Working range:12.5-240mm
  • Driven motor: Pneumatic and Electric
  • Customized machine is acceptable



Technical Parameters

Brand Bohyar
Model BPP3PE
Drive Mode Electric
Electric requirement 220-230V 1PH 50/60HZ
Power 1.43KW
Application Range (I.D.) 36-90mm
Wall Thickness ≤20mm
Rotating speed 3-50rpm
All standard accessories included

*Electric: Rated voltage of 220V, 50/60Hz

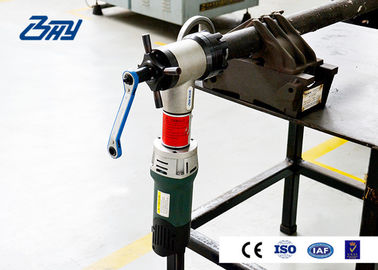

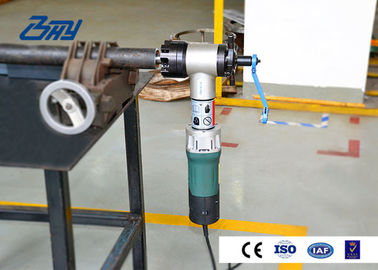

Installation & Processing

■ During installation, the tools should not touch the feed spindle and the expansion block.

■ The expansion block should not be stretched too deep into the pipe and keep about 20 mm from the pipe end face.

■ During processing, control the feed speed based on cutting conditions to avoid damage of blades and parts in the machine; In case of vibration of the machine or uneven bevel face, timely tighten the expansion hand wheel to prevent the looseness of the expansion, which may cause damages to the machine.

During installation, the tools should not touch the feed spindle and the expansion block.

■ The expansion block should not be stretched too deep into the pipe and keep about 20 mm from the pipe end face.

■ During processing, control the feed speed based on cutting conditions to avoid damage of blades and parts in the machine; In case of vibration of the machine or uneven bevel face, timely tighten the expansion hand wheel to prevent the looseness of the expansion, which may cause damages to the machine.



Product series



Model

Processing range

(IDmm)

Wall thickness

(mm)

Rated power

(kw)

Rotating speed

(rpm)

BPP1E kit1 12.5-15 ≤3 1.43 3-70
BPP1E kit2 15-20 ≤5 1.43 3-70
BPP1E kit3 20-28 ≤6 1.43 3-70
BPP3E/ BPP3P 26-79 ≤15 1.43 3-70
BPP3PE 36-90 ≤15 1.43 3-50
BPP4E/ BPP4P 45-105 ≤20 1.43 34
BPP6E/ BPP6P 65-159 ≤20 1.43 34
BPP9E 80-240 ≤15 1.43 16

*Electric: Rated voltage of 220V, 50/60Hz

Information and Feedback

Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.



Feedback: To constantly improve the satisfaction of users with the product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
