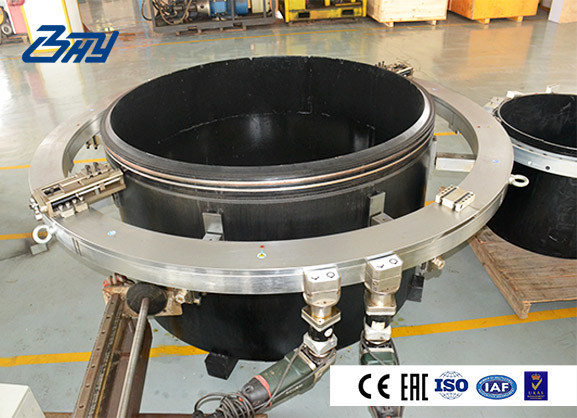

Top Rated Pneumatic Pipe Cutting Beveling Machine 220V AC Auto Feed

Top Rated Pneumatic Pipe Cutting Beveling Machine 220V AC Auto Feed
Top Rated Pneumatic Pipe Cutting Beveling Machine 220V AC Auto Feed Top Rated Pneumatic Pipe Cutting Beveling Machine 220V AC Auto Feed

Large Image :  Top Rated Pneumatic Pipe Cutting Beveling Machine 220V AC Auto Feed

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0612P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0612P Drive Mode: Pneumatic
Dimension: 1000*990*305mm Net Weight: 45kg
Business Parters: CNPC, SINOPEC, CNOOC Etc. Material: High-strength Aeronautical Aluminum
High Light:

pneumatic pipe cutting beveling machine

,

pneumatic cold cutting machine

Top Rated Pneumatic Pipe Cutting Beveling Machine 220V AC Auto Feed



Product Introduction

Products of SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.



Specifications

We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC. We adopt the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.



Product Features

■ Split frame technology, easy to install in the pipeline;

■ Out-mounted, clamping by multipoint jaws;

■ Cold cutting, don’t influence the pipe’s material;

■ Auto feed, cut and bevel the pipe at the same time, cost-effective;

■ Three types of drive motors: electric, pneumatic and hydraulic;

■ Can process material: carbon steel, alloy steel, stainless steel etc.

■ Precise cutting and beveling tools with high efficiency and long service life.



Tool Slides

Spring tool slide It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure even feed, and can keep standard wall thickness of large diameter counterbore when combined with counterbore tool slide.

Thick-wall tool slide



It can be applied to SFM 0206 to 4248 with stroke of 64 mm;

It can be used in large-size pipes and pipes with different wall thicknesses.

Drilling and milling tool slide

Achieve pipe cutting by using the drilling and milling.

High-strength tool slide, smooth cutting and simple operation.

Internal boring tool slide It is suitable for pipeline internal boring.
Bridge type tool slide It is suitable for pipeline internal boring and single point beveling.



FAQ

Q: Do you have any foreign agents?

A: Yes, of course. We pay attention to the foreign market and expand the foreign continuously through our agents in Russia, Korea, Sudan, Pakistan, Malaysia and so on. We are willing to develop new agents in other countries.

Q: Which certificate does your company have?

A: We have many certificates such as high-tech enterprises, high-tech product certification, high-tech product certification, ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates of our machines.
